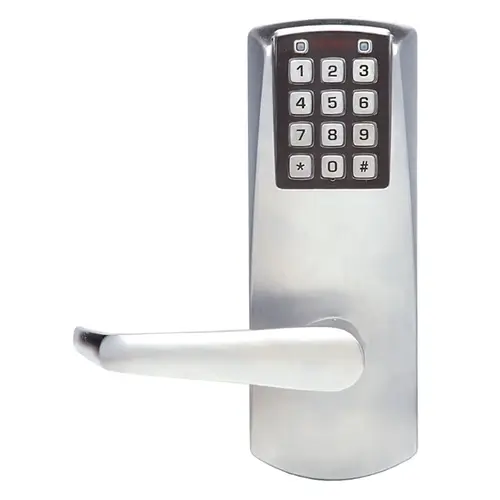

Kaba Access E201YBLL-626-41 E-Plex 201U Series Electronic Pushbutton Exit Trim Satin Chrome
Item #: E201YBLL-626-41 by Ilco
Brand: Kaba Access
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
- Backset: Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset Mortise: 2¾" (70 mm) backset Exit Trim Model: Varies by Exit Device
- Latches: Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional) Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
- Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
- Minimum Stile Required: 5" (127 mm)
- Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
- Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included
Color
Satin Chrome
Color Code
626/US26D
Cylinder Type
SFIC Prep Less Core
Lock Platform
Exit Device Trim
Package Qty
1
Base Material
Brass or Bronze
Finish
626 - Satin Chrome
Stile Type
Wide Stile
Electronic
Yes
Door Handing
Field Reversible
Substrate Type
Brass or Bronze
Locking Device
Y - Exit device trim - Select models for Yale, Corbin Russwin (function 1 or 2 only)
Stile Width
5"
Key Override
B - BEST and equivalents (6 or 7-pin length), cylinder not included, lever preps not interchangeable
Lock Type
Exit Device Trim
Cylinder and Keyways
Schlage C keyway standard for XS key override option
Product Overview
E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Yale 7100, Corbin ED5200 Rim Devices, 6/7-Pin SFIC Prep, Less Core, Satin Chrome
Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes
