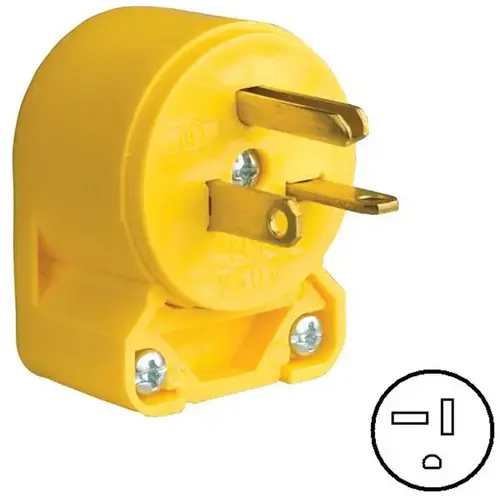

Eaton 4509AN-BOX Electrical Plug, 2 -Pole, 20 A, 250 V, NEMA: NEMA 6-20, Yellow
Item #: 4509AN-BOX by Cooper Wiring Devices
UPC #: 032664536854
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Solid brass plug blades are firmly embedded in body
- Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Terminal screw clamps are designed to contain wire and prevent binding
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
- Vinyl angle plugs have eight possible positions for maximum convenience
Mounting Type
Screw
Material
Thermoplastic/Vinyl
Dimensions
1-61/64 in L x 1-1/2 in W x 1-27/64 in D
Type
Angled Straight Body
Color
Yellow
Operating Temperature
-20 to 60 deg C
NEMA Configuration
NEMA 6-20
Number of Poles
2
Number of Wires
3
Grounding Type
Grounded
Nomenclature
4509AN-BOX 20A-250V VINYL PLUG
Current Rating
20 A
Cable/Wire Size
1/4 to 21/32"
Solid brass plug blades are firmly embedded in body. Resists chemical attack and is less brittle in extremely low temperatures. With terminal screw clamps. Combination Slot/Phillips head mounting and terminal screws for installation flexibility (Slot/Robertson screws in Canada where available). Terminal screws backed out, ready for wiring. Yellow color. Meets all UL 498 requirements.
