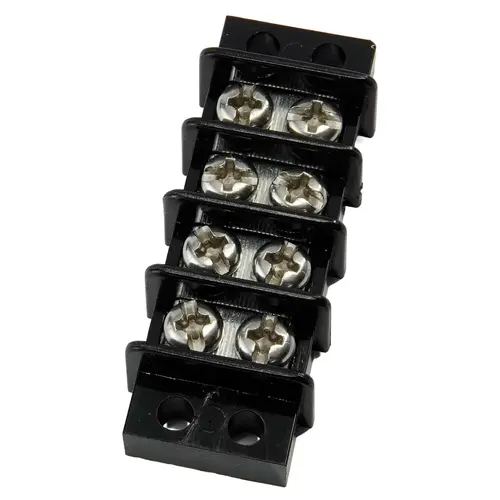

EGIS MOBILE ELECTRIC 2265-04 Terminal Blocks

Item #: 2265-04 by EGIS MOBILE ELECTRIC

Brand: EGIS MOBILE ELECTRIC

See reviewsSee reviews
See reviews summary
In Stock

$15.25

/each
SAVE UP TO 1.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available

Amperage: 65 Amps

20 amps
30 amps
65 Amps

Number of Circuits: 4 Circuits

2 Circuits
4 Circuits
6 Circuits
8 Circuits
10 Circuits
12 Circuits
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Marine grade materials ensure long lasting reliablility in harsh environment applications
  • 125 Volt AC or DC rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac application
  • Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls
  • Anti-Rotation Ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long
  • Conductor Material: Tin Plated Copper Alloy
  • Max Voltage: 240 VAC/VDC
  • Maximum Continuous Current: 20 Amps, 30 Amps or 65 Amps
  • Hardware Material: Stainless Steel
  • Mounting Screw Size: #8 (M4) or #10 (M5)
  • ROHS Compliant: Yes
  • CE Marked: Yes
  • Max Operating Temperature: 100 C / 212 F
  • Min Operating Temperature: -40 C (-40 F)
  • Max Screw Torque: 10 in-lbs (1.1 N-m), 15 in-lbs (1.7 N-m) or 25 in-lbs (2.8 N-m)
  • Mechanical Vibration: 10g
  • Mechanical Shock: 100g
  • Dielectric Strength: 2000VAC

Amperage

65 Amps

Number of Circuits

4 Circuits

Product Overview
EGIS MOBILE ELECTRIC Terminal Blocks Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. 125 Volt AC or DC rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac application.
