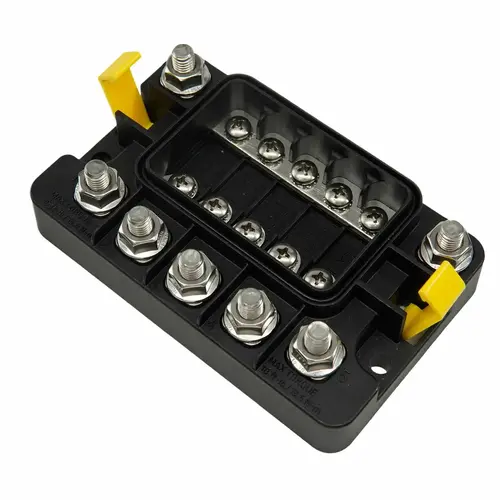

EGIS MOBILE ELECTRIC 3908 5 MIDI/AMI Circuits with M8 Outputs Fuse Block

Item #: 3908 by EGIS MOBILE ELECTRIC

Brand: EGIS MOBILE ELECTRIC

See reviewsSee reviews
See reviews summary
In Stock

$120.80

/each
SAVE UP TO 12.08
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Bullet-proof Construction: Sealed to IP66/IP6K9K, high temperature materials, Gore-Tex vent allows mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
  • Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism hold cover on securely
  • SAE J1171 Ignition Protected
  • Flex System Compatible with Flex interconnected busbars
  • Voltage Range: 0-70Vdc
  • Circuits: 5
  • Maximum Total Current Per Block: 500 Amps
  • Maximum MIDI / AMI Fuse Value: 200 Amps
  • Ignition Protected: SAE J1171
  • Ingress Protection Ratings: IP66, IP6K9K
  • Max Vibration Withstand: 50g (10-2000Hz)
  • Fastener Size For Mounting Holes: M6 or 1/4"
  • Mounting Fastener Maximum Torque: 80 in-lbs
  • Hardware Material: Stainless Steel Self-Locking
  • Compatible with MINI / ATM Circuit Breaker: Yes
Product Overview
EGIS MOBILE ELECTRIC 5 MIDI/AMI Circuits with M8 Outputs Fuse Block Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks. 5 MIDI/AMI circuits with M8 outputs. Expandable with Dual, Triple, and Quad Link Busbars for Plug-and-Play Install and Complete Switching/Protection Solutions.
