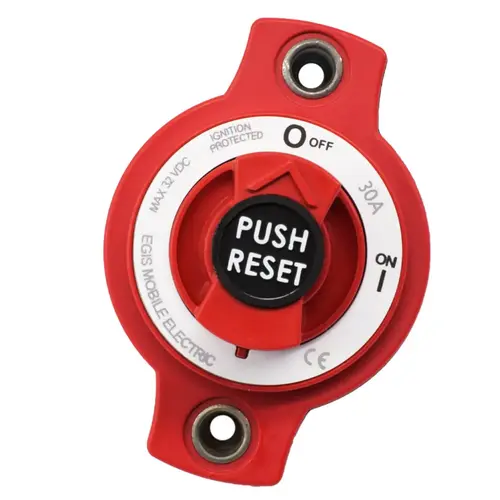

EGIS MOBILE ELECTRIC 4701-30 Mini Breaker Disconnect Switch, 30 A, Panel Mount

Item #: 4701-30 by EGIS MOBILE ELECTRIC

Brand: EGIS MOBILE ELECTRIC

See reviewsSee reviews
See reviews summary
In Stock

$52.99

/each
SAVE UP TO 5.30
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available

Amperage: 30 Amp

30 Amp
60 Amp
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Harsh Environment design with shock and vibration resistanc,e ideal for marine and vehicle electrical systems
  • Weatherproof Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • SAE & ABYC Compliant ensures compliance to meet the needs for modern vehicle and vessel installations
  • Max Voltage: 42Vdc
  • Short Circuit Interrupt Rating: 3kA/U3 per ABYC at 14Vdc
  • Short Circuit Interrupt Rating: 1.5kA/U3 per ABYC at 28Vdc
  • Hardware Material: Stainless Steel
  • Terminal Stud Size: 1/4"-28
  • Ingress Protection: IP66/IP67 (Flush Mount)
  • Max Operating Temperature: 60 C / 140 F
  • Min Operating Temperature: -40 C / -40 F
  • Ignition Protection: ISO 8846, USCG, ABYC, UL110,7 UL150,0 and SAE J1171
  • Mechanical Vibration: UL1107 at 100% rated current
  • Mechanical Shock: UL1107 at 100% rated current

Amperage

30 Amp

Product Overview
EGIS MOBILE ELECTRIC Mini Breaker Disconnect Switch, Panel Mount 2-in-1 Circuit Breaker / Disconnect Switch incorporates traditional battery disconnect switching (Non-engine) and circuit protection. 42 Max Vdc rating easily supports 12, 24, and 36V systems. Ideal for trolling motor circuit switching applications.
