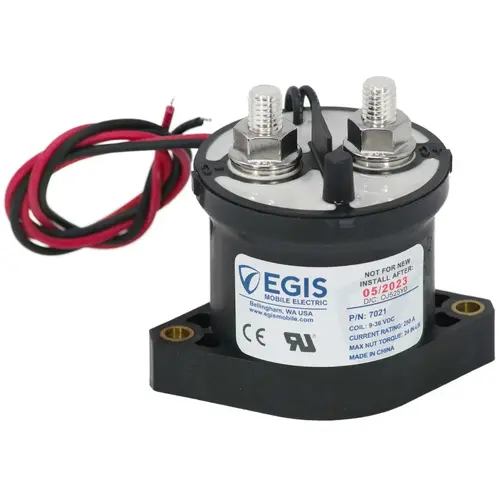

MOBILE ELECTRIC 7021 Contactor, 250A, 12/24 V

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

EGIS MOBILE ELECTRIC 7021 MOBILE ELECTRIC 7021 Contactor, 250A, 12/24 V

Item #: 7021 by EGIS MOBILE ELECTRIC

Brand: EGIS MOBILE ELECTRIC

UPC #: 850035199671

See reviewsSee reviews
See reviews summary
In Stock

$177.31

/each
SAVE UP TO 17.73
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Ignition-protected safe for installation in closed compartments with potential explosive gases
  • High Electrical Switching Endurance delivers 6,000 cycles at 250A / 450V, 100,000 cycles at 250A / 14V
  • High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc)
  • Bullet-proof Construction: Sealed device, high-temp materials for engine compartment applications, and stainless self-locking hardware
  • Operational Control Voltage Range: 9-36Vdc
  • Dielectric Voltage Withstand: 2,200 VRMS
  • Maximum Switching Voltage: 1,000 Vdc
  • Maximum Continuous Current: 500 Amps
  • Contact Arrangement: SPST-NO (Form-A)
  • Aux Contacts: Normally Open
  • Terminal Material: Silver Plated Copper
  • Max Operating Temperature: 85 C (185 C)
  • Min Operating Temperature: -40C (-40C)
  • Hardware Material: 18-8 Stainless, Self-Locking
  • Terminal Stud Size: M8-1.25
  • Ingress Protection: IP67 IP6K/9K
Product Overview
EGIS MOBILE ELECTRIC 500A 12/24V Solenoid Reduce Installation Costs and Weight by eliminating long cable runs to manual switches with robust remote switching of high-ampere engine and auxiliary loads. Ensure Flawless Operation for the Life of the Installation with a hermetically sealed contactor sealed against dust & moisture Intrusion. High Contact Voltage Rating easily supports 12 or 24 Vdc control-voltage applications while also supporting higher switching-voltage applications up to 48 V and beyond.
