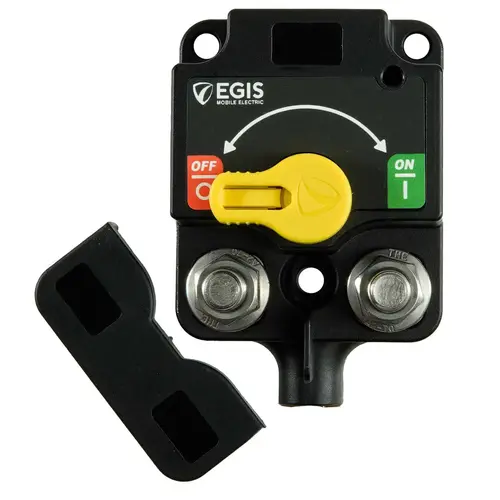

EGIS MOBILE ELECTRIC 8710-1900 XD Single - 500 A Heavy Duty Battery Switch/Mechanical Contactor

Item #: 8710-1900 by EGIS MOBILE ELECTRIC

Brand: EGIS MOBILE ELECTRIC

UPC #: 850035199794

See reviewsSee reviews
See reviews summary
In Stock

$64.67

/each
SAVE UP TO 6.47
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Terminal Stud Protection: Included protective cover with convenient label recesses ensures no accidental shorts occur and allows for easy identification of circuits long term
  • Intuitive Manual Control: Bright yellow knob and intuitive, easy-to-read on/off label simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state
  • Sealed IP67 Construction keeps moisture out, and the integrated Gore-Tex pressure regulation vent increases its ability to operate reliably for long term harsh environment operation
  • Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware
  • Made In The USA
  • Input Voltage Range (Vdc): 8.0 - 36.0
  • Temperature Range (Ambient) -40 C to 125 C
  • Shock Protection: 10,000 cycles - 20g
  • Vibration: 0.020" Amplitude, xyz 24 hr, 10 Hz to 60 Hz, 0.020"
  • Mechanical Cycles (min) 10,000 cycles
  • Live Current Switching -10,000 cycles : 12V/300A, 24V/150A
  • Mechanical Switching Life: 1,000,000 cycles
  • Hardware Material: Stainless Steel Self-Locking
  • Terminal Stud Torque: 140 in-lbs
  • Ingress Protection: IP67
  • Flex System Compatible with Flex interconnected busbars
Product Overview
EGIS MOBILE ELECTRIC XD Single - 500 A Heavy Duty Battery Switch/Mechanical Contactor Manual XD Series battery disconnect features Silver Alloy Contact Points, providing high-amp, full-voltage switching capability versus legacy rotary-style switches. Expandable: Integrate the 8710-1900 XD Battery Disconnect easily with XD Series FLEX/ACR/LVD relays via using optional 8790 Link and 8791 Cross Link Busbars for easy integration with other Single, Dual, or Triple Circuit XD relays.
