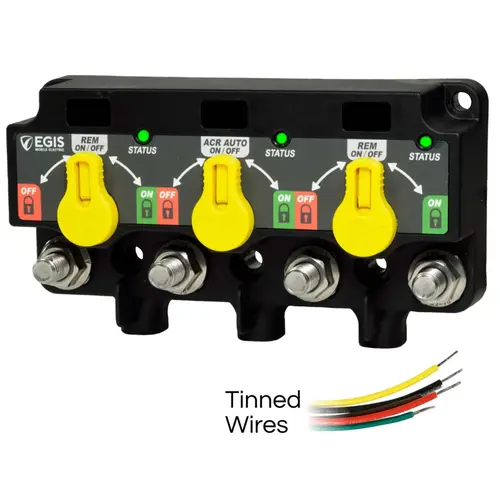

EGIS MOBILE ELECTRIC 8730-1535 XD Triple - Flex 2 - (Relay)-(ACR)-(Relay) with Knobs

Item #: 8730-1535 by EGIS MOBILE ELECTRIC

Brand: EGIS MOBILE ELECTRIC

UPC #: 850035199565

See reviewsSee reviews
See reviews summary
In Stock

$449.74

/each
SAVE UP TO 44.97
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
  • Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
  • Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers
  • 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts
  • Plug & Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays
  • Input Voltage Range (Vdc) 8.0 - 36.0 Auto-Ranging
  • Nominal Voltage (Vdc): 12 v - 24 v
  • Over Voltage protection (Vdc): 17.0 (12v) / 34.0 (24v)
  • State Change Current (20 msec) : 5.0A (12v) / 3.0A (24v)
  • Standby Current (mA): 1.3 (12v) / 1.3 (24v)
  • Live Current Switching - 50,000 cycles: 12V/300A / 24V/300A
  • Mechanical Switching Life: 1,000,000 cycles
  • Hardware Material: Stainless Steel Self-Locking
  • Terminal Stud Torque: 120 in-lbs
  • Ingress Protection: IP67
  • Flex System Compatible with Flex interconnected busbars
Product Overview
EGIS MOBILE ELECTRIC XD Triple - Flex 2 - (Relay)-(ACR)-(Relay) with Knobs Replaces Three Individual High Amp Relays with one 500 Amp Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how operate manual controls and what state the manual controls have forced the relay into. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual-battery load switching via the outer relays, and a central automatic charging relay to share charge current, are easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 3-4 Battery Systems that require 2 or 3 ACRs, a single three-relay ACR provides a significant reduction in off-state quiescent current draw and space usage, while eliminating unnecessary interconnection cables. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 3 or 4 battery systems with standard busbar interconnect accessories.
