Electric Solenoid Bolt Lock

Roll over image to zoom in

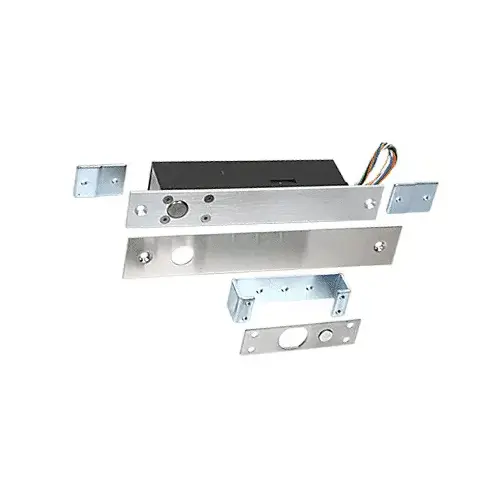

CRL MLEDB1 Electric Solenoid Bolt Lock

Item #: MLEDB1 by CR Laurence

See reviews See reviews

In Stock $219.01 /each

SAVE UP TO 21.90

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Dual Monitoring Lock
  • Selectable Locking Time
  • Fully Automatic 12/24V DC Selection
  • CE Listed
  • Fail-Safe Lock Requires Power to Remain Locked

Depth

1-3/4 in (44 mm)

Body Depth

1 3/4

Cover Plate

1-1/2" x 8-11/16" (38 x 220 mm)

Color

Brushed Stainless Steel

Face Size

1-5/16" x 8-5/16" (33 x 211 mm)

Input

12 or 24 Volts DC (Automatic)

UL Listed

Yes

Current Draw

60mA @ 12V DC (Standby), 90mA @ 24V DC (Standby)

Throw (Inches)

1" Long x 9/16" Diameter

Cover Plate Width (Inches)

1 1/2

Cover Plate Length (Inches)

8 11/16

Face Plate Height

8 5/16

Face Plate Width

1 5/16

Electric Solenoid Door Bolt Lock, 12V/24V, Fail-Safe Design is designed for use with double acting doors where electromagnetic locks are not required. It has a 0, 2.5, or 5-second locking timer, and dual monitoring capability. Input Voltage can be selected as 12 or 24V DC. Its constructed with a stainless steel bolt and strike plate providing secure locking. It has fail safe deign, it needs power for the lock to remain engaged. On power loss or failure, lock disengages to allow free passage. Specifications: Input: 12 or 24 Volts DC (Not Automatic) Current Draw: 300mA @ 12V DC (standby); 150mA @ 24V DC (standby) Dimensions: Face = 8-5/16" x 1-5/16" (211 x 33 mm) Body Depth = 1-3/4" (44 mm) Cover = 8-11/16" x 1-1/2" (220 x 38 mm) Throw = 1" (25 mm) Long x 9/16" (14.3 mm) Diameter Fail-Safe Lock: Requires Power to Lock Please note: the supplied strike must be installed properly in order for the solenoid bolt to function. DS 06/25/2016

From Manufacturer

This CRL Electric Solenoid Bolt can be used with double acting doors. It features a 0, 2.5, or 5-second locking timer, and dual monitoring capability. Input Voltage can be selected as 12 or 24V DC. Please note: the supplied strike must be installed properly in order for the solenoid bolt to function.

Recommended for high-security interior door and cabinet applications where electromagnetic locks are not required. Compatible with virtually any access control system. Note this electric solenoid bolt is a fail-safe design, meaning that power is required in order for the lock to remain engaged. On power loss or failure, lock disengages to allow free passage.

Brushed stainless cover plate included, along with strike. Minimum order is one each.
SPECIFICATIONS:
Input: 12 or 24 Volts DC (Not Automatic)
Current Draw: 300mA @ 12V DC (standby); 150mA @ 24V DC (standby)
Dimensions:

  • Face = 8-5/16" x 1-5/16" (211 x 33 mm)
  • Body Depth = 1-3/4" (44 mm)
  • Cover = 8-11/16" x 1-1/2" (220 x 38 mm)
  • Throw = 1" (25 mm) Long x 9/16" (14.3 mm) Diameter

Fail-Safe Lock: Requires Power to Lock
