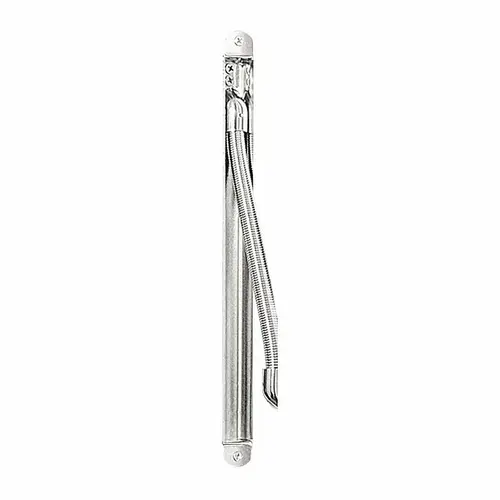

Securitron EL-EPT Electrical Power Transfer Standard Version ElectroLynx Satin Stainless Steel
Item #: EL-EPT by SECURITRON
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Installs in the Door and Frame Edges
- Flexible Steel Shield Protects Wire Bundles Up to 5/16" Thick
- Works with Almost Any Type Butt Hinge, Continuous Hinges and Some Pivot Hinges
- Rounded Mounting Tabs
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
UL Listing Type
10C,ULC-S318
Package Volume
0
Color
Satin Stainless Steel
Product Width
1.1875"
Burglar Rated
No
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Restrictions
None
Product Height
1.4375"
Package Qty
1
ANSI Number
10C
Color Code
630/US32D
Origin
USA
BAA Qualified
Yes
Product Length
9.0265"
Base Material
Stainless Steel
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Product Type
Touch Sense Bar
Product Depth
0.67 Inch
Manufacturer Parent
Assa Abloy
Door Swing
Standard
Function
Power Transfer
Function Description
Power and Data Transfer
Cable Length
10 Inch
Sub-Series
EL-EPT
ADA Compliant
No
Function Family
Part/Component
Standards
UL 10C Listed; CAN4-S104 Listed; UL 634 Listed; ULC/ORD-C634; ANSI/SDI-BHMA A250.13 Listed
Wire Gauge
12 to 22
Resistance Properties
Tamper Resistant; Windstorm Resistant; Weather Resistance
Features
Concealed; Durable Stamped Steel Housing; Flexible Spring Steel Conduit; Rounded Mounting Tabs; Magnacare Lifetime Warranty
Indoor or Outdoor Use
Indoor
Number of Wires
9 to 12
Connector Type
Electrolynx
Series
Parts/Accessories
Hinge Size Used
Up to 3/4" Offset
Dimension
9-4/5" x 12-7/10"
Type
Power Transfer
Manufacturer Warranty
Limited Lifetime Warranty
Hazardous Material
No
No of inners
1
Product Overview
Electrolynx Power Transfer
The heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door. The unit is discreetly concealed between the frame and door when the door is closed. Available in three multi-wire configurations and four finishes, the CEPT complements any architectural setting. Mortises into the edges of the door and frame. Direct retrofit for competitor products Tamper resistant. All metal construction including back boxes . 7/8" knockouts on back boxes accommodate EMF-type fittings. Tested to 1,000,000 cycles. Compatible with butt hinges up to 6" and continuous hinges with cutout. CEPT-10 includes 8-22 AWG wires plus 2-18 AWG wires for higher current devices. CEPT-C5E includes CAT5E compatible with 9 - 22 AWG wire stranded conductor, Molex connectors . EL-CEPT is ElectroLynx compatible with 12-22 AWG. wires, ElectroLynx connectors
Power transfers help to assist in the secure transfer of power and data.
