Schlage Commercial  Electrified Lock Body for Use with L9090; L9092; or L9094
Qty
+
$380.10   /each

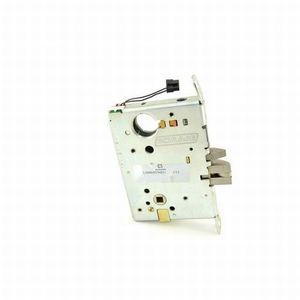

Schlage Commercial L9090LB Electrified Lock Body for Use with L9090; L9092; or L9094

  • Electrified Lock Body
  • L Series
  • Handing: L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
  • Door Thickness: 1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.
  • Made With Strong Materials
  • Many Parts Are Finish Specific
  • Backset: 2-3/4” (70 mm) only.
  • Armored Front: L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional. L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
  • Case Size: L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm) L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
  • Spacing: Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).
  • Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.
  • Exposed Trim
  • Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.
  • Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
  • Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
  • Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
  • Strike: L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
  • Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
See Full Product Description

Additional options:

SALE

$380.10 /each

Qty

In Stock
Quick Shipping

Usually ships in 1 business day*

Additional options:

SALE
+
In Stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Electrified Lock Body
  • L Series
  • Handing: L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
  • Door Thickness: 1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.
  • Made With Strong Materials
  • Many Parts Are Finish Specific
  • Backset: 2-3/4” (70 mm) only.
  • Armored Front: L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional. L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
  • Case Size: L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm) L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
  • Spacing: Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).
  • Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.
  • Exposed Trim
  • Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.
  • Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
  • Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
  • Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
  • Strike: L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
  • Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.

  • Product Description
  • Technical Details 12
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Strike

10-072 Strike

Fire Rated

3 Hours {A}

Product Type

Lock Part/Accessory

Backset

2-3/4" Backset

Handing

Reversible

Function

Electrically Unlocking or Locking Outside Lever Continuously No Cylinder

  • Electrified Lock Body
  • L Series
  • Handing: L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
  • Door Thickness: 1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.
  • Made With Strong Materials
  • Many Parts Are Finish Specific
  • Backset: 2-3/4” (70 mm) only.
  • Armored Front: L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional. L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
  • Case Size: L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm) L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
  • Spacing: Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).
  • Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.
  • Exposed Trim
  • Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.
  • Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
  • Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
  • Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
  • Strike: L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
  • Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
Electrified Mortise Lock (single outside lever)CASE ONLY
L SeriesMortise Lock

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Key features:
  • Exceeds ANSI/BHMA Gradel operational and security standards
  • Expansive list of configurations and options, including retrofit indicators
  • 50 standard mechanical functions, custom functions also offered
  • "The Original" universal lock case allows creation of 10 functions from a single lock body
  • 14 finishes and 33 levers, two knobs, five roses and three escutcheon designs
  • Supports standard, SFIC and FSIC cylinder formats
  • Multiple key systems available - open, patented, restricted, geographic exclusive, UL 437
Specifications: Case material:
  • CRS with zinc dichromate plating
Case size:
  • 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm)
Spacing:
  • Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm)
Door thickness:
  • Standard: 1 3/4" (44 mm)
Handing:
  • Non-handed
33 lever designs:
  • Forged brass or bronze and cast stainless steel
Two knob designs:
  • Heavy-duty wrought brass, bronze or stainless steel
Ligature resistant:
  • lever (SL1) and knob (SK1)
Tactile warning applied to outside lever:
  • Available on 01, 02, 03, 05, 06, 07, 12, 17, 18, M51, M52, M81, ME1, ME2, ME3 lever designs
L escutcheons:
  • 7 15/16" x 1 3/4" x 7/16" (202 mm x 44 mm x 11 mm);
    cold-forged brass or bronze and stainless steel
N escutcheons:
  • 7 7/8" x 2 1/2" x 7/16" (200 mm x 64 mm x 11 mm);
    heavy wrought reinforced brass, bronze and stainless steel
Roses:
  • A ,B ,C: wrought brass or bronze and stainless steel;
    AVA and MER: forged brass
Finishes:
  • 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
Combinations:
  • Available with knob both sides, lever both sides, or knob/lever combinations. Roses cannot be combined with escutcheons.
Backset:
  • 2 3/4" (70 mm) only
Armor:
  • 1 1/4" x 5 9/16" x 7/32" (32 mm x 141 mm x 6 mm)
Bolt:
  • 1" (25 mm) throw stainless steel deadbolt
  • 3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Strike:
  • 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box
Formats:
  • Standard: Pin and tumbler mechanism in the Patented Schlage Everest 29 S123 keyway (6-pin); two nickel silver cut keys per lock
Certifications: ANSI/BHMA:
  • With FSIC interchangeable core cylinders: Grade 2 Security
  • With SFIC interchangeable core cylinders: Grade 3 Security
  • ASTM F476-76 Grade 40
ICC:
  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL:
  • UL 10C and CAN/ULC-S104 3-hour Fire Listed
  • All locks listed for A label single doors,
    4' x 10' and pairs 8' x 10'
  • Letter F and UL symbol on latch front indicate list
  • UL 437 Listed when using UL 437 cylinder
  • UL Listed for 3-hour fire door (except L9076 and L9077)
CA Fire Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2"
    (64 mm) or less comply
FL Building Code:
  • Miami-Dade NOA's and Florida Building Commission Listings
Warranty:
  • 3 year limited mechanical and 1 year limited electromechanical
