Elk Products Inc 924 DPDT Relay 12 Or 24 Volts

Item #: 924 by ELK Products, Inc

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$34.20

/each
SAVE UP TO 3.42
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 109 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

104371

Voltage

12V DC, 24V DC

Function

Relay Module

Height

1.38

Length

7.48

Width

3.74

Product Overview

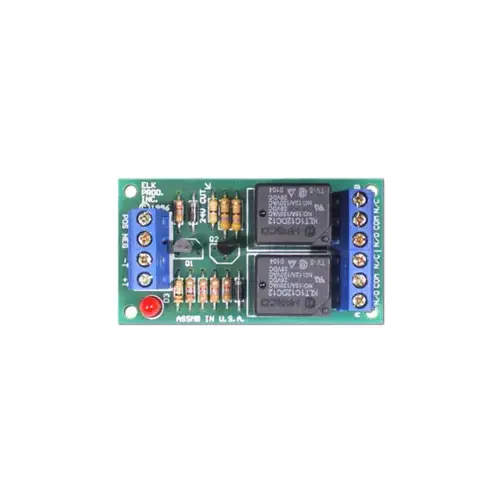

ELK 924 Sensitive Relay
DPDT 12 or 24 VDC with 1.2 mA Trigger
ELK-924
ELK-9244 (four modules)

The ELK-924 Sensitive Relay module features DPDT (Form "C") dry contacts for general purpose switching of devices or high current loads. It operates on 12 or 24 volts DC and can be triggered with a negative or positive input at an incredible low current of only 1 milliamp.

*Also available in a 4 pack (ELK-9244) which is packaged as 4 relay modules grouped on a pre-scored break-off circuit board.

Specifications:

  • Operating Voltage: 12 or 24 Volts DC, jumper selectable
  • Current Draw: 60mA (both relays on)
  • Relay Contacts: Form "C" , 7A @ 30VDC, 10 A @ 125VAC
  • Size: 1.5" X 2.75"
  • Trigger Voltage: 5 - 24VDC
  • Trigger Current: 1.2mA @12 VDC
