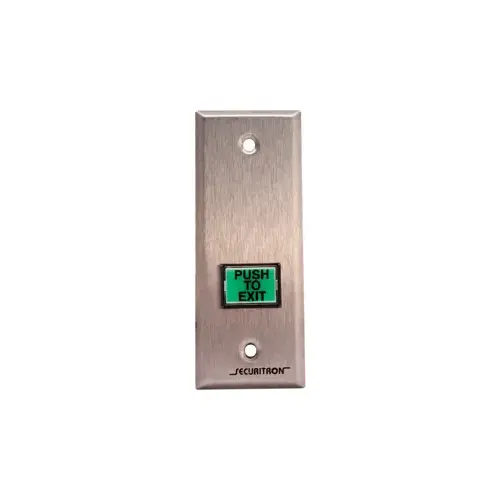

Securitron EEB3N Emergency Exit Button with 30 Second Timer Narrow Stile Green and Red Satin Stainless Steel Finish
Item #: EEB3N by SECURITRON
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Backup Device in Case of Exit Sensor Failure Per BOCA, NFPA, IBC, and VBC Code
- SPST 3 Amp Wet N/C Contacts
- Momentarily Pressing the EEB Releases the Door for 30 Seconds
- Re-triggerable for Added 30 Second Release
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Finish
Satin Stainless Steel
UL Listing Type
294
Package Volume
0
Product Width
2-3/4 Inch
Burglar Rated
No
Fire Rated
No
Restrictions
None
Product Height
4-1/2 Inch
Package Qty
1
ANSI Number
294
Plastic Color
Black
Color Code
630/US32D
Mounting Plate Size
Narrow Jamb
Origin
USA
BAA Qualified
Yes
Product Length
4.5"
Base Material
Stainless Steel
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Product Type
Access Control Part/Accessory
Alternate Part Number-1
124886
ADA Compliant
No
Contact Ratings
226 Current at 12 VDC; 118 Current at 24 VDC
Contact Type
SPDT
Standards
UL Listed
Button Color
Green; Red
Function Family
Part/Component
Features
Mounted Next to Door; Momentarily Pressing the Button Releases Door for 30 Seconds
Series
Parts/Accessories
Switch Type
Momentary
Manufacturer Parent
Assa Abloy
Faceplate Graphic
Push to Exit' Text
Button Shape
Square
Resistance Properties
Weather Resistant
Faceplate Graphic Color
Black
Sub-Series
EEB3N
Voltage
12/24 VDC
Mounting Type
Single Gang; Narrow Stile
Application
Indoor Use
Operating Temperature
32 to 110°F
Button Size
2 Inch
Style
Square Push Button
Type
SPST
Mounting
Mullion Mount, Surface Mount
Switch Mode
Momentary, Normally Closed, Time Delay
Voltage/Amp Rating
12 - 24V DC
Product Overview
Redundant Backup Ensures Safe Egress Install the EEB Emergency Exit Button next to the door to provide additional safety and redundancy as required by code when using a motion detector for a request-to-exit device.
