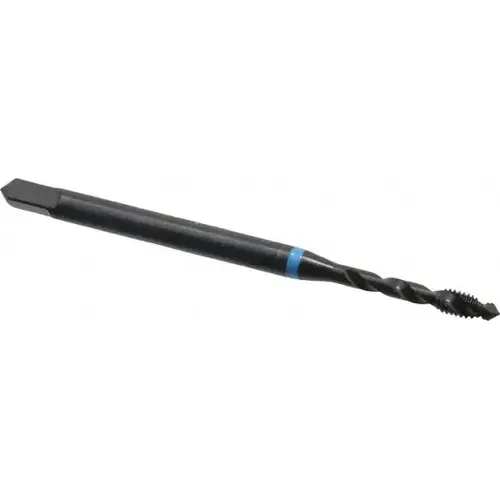

Spiral Flute Tap: #4-48 UNF, 2 Flutes, Modified Bottoming, 2B Class of Fit, Cobalt, Oxide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Emuge BU503200.5037 Spiral Flute Tap: #4-48 UNF, 2 Flutes, Modified Bottoming, 2B Class of Fit, Cobalt, Oxide Coated

Item #: BU503200.5037 by Emuge

See reviewsSee reviews
See reviews summary

$68.71

/each
SAVE UP TO 6.87
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Cobalt

Flute Style

Medium

Helix Angle

39

Number of Flutes

2

Thread Direction

Right Hand

Series

Enorm-VA

Thread Standard

UNF

Chamfer

Modified Bottoming

Class Of Fit

2B

Coating/Finish

Oxide

Coolant Through

No

Overall Length (Decimal Inch)

2.2050

Oversize

No

Shank Diameter (Decimal Inch)

0.1410

Square Size (Decimal Inch)

0.1100

Thread Length (Decimal Inch)

0.2360

Thread Size (Inch)

#4-48

UNSPSC Code

23241600

Vendor Drop Ship

Y

Flute Direction

Right Hand

Tapping Depth (Decimal Inch)

0.7090

Product Overview
Spiral Flute Tap: #4-48 UNF, 2 Flutes, Modified Bottoming, 2B Class of Fit, Cobalt, Oxide Coated 0.236" Thread Length, 2.205" OAL, Right Hand Thread, Series Enorm-VA
