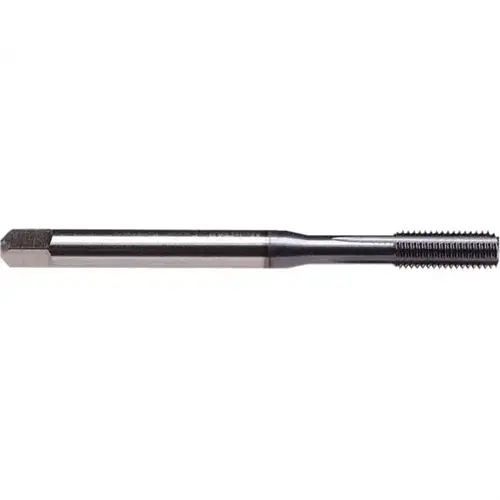

Emuge BU599010.5005 Thread Forming Tap: #6-32 UNC, 2B/3B Class of Fit, Form Tap, Cobalt, TiCN Coated

Item #: BU599010.5005 by Emuge

See reviewsSee reviews
See reviews summary
In Stock

$54.94

/each
SAVE UP TO 5.49
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

High-Speed Steel-E

Application

Blind Hole Threading

Material Application

Steel

Overall Length (mm)

56.00

Trade Name

InnoForm 1-MULTI/E-SN-TiCN

Thread Direction

Right Hand

Series

BU599010

Thread Length (mm)

12.00

Thread Standard

UNC

Chamfer

Bottoming

Class Of Fit

3BX

Coating/Finish

TiCN

Coolant Through

No

Flute By Diameter Ratio

3xD

Overall Length (Decimal Inch)

2.2047

Shank Diameter (Decimal Inch)

0.1410

Square Size (Decimal Inch)

0.1100

Tapping Depth (mm)

20.00

Thread Length (Decimal Inch)

0.4724

Thread Size (Inch)

#6-32

UNSPSC Code

23241600

Vendor Drop Ship

N

Chamfered Threads

1.5-2P

Material Application Code

P

Tapping Depth (Decimal Inch)

0.7874

Product Overview
Thread Forming Tap: #6-32 UNC, 2B/3B Class of Fit, Form Tap, Cobalt, TiCN Coated
