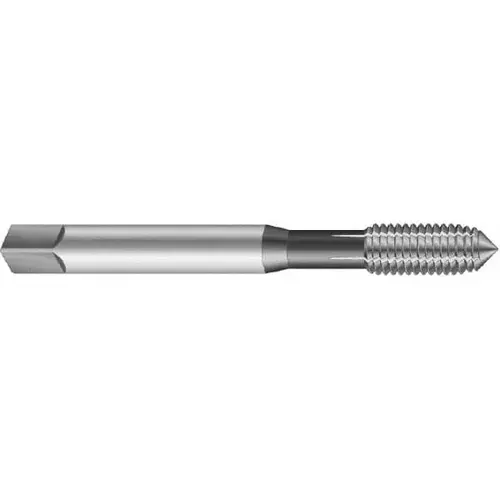

Thread Forming Tap: #4-48 UNF, 2BX Class of Fit, Modified Bottoming, Cobalt, Nitride Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Emuge BU921000.5037 Thread Forming Tap: #4-48 UNF, 2BX Class of Fit, Modified Bottoming, Cobalt, Nitride Coated

Item #: BU921000.5037 by Emuge

See reviewsSee reviews
See reviews summary

$122.96

/each
SAVE UP TO 12.30
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

High-Speed Steel-E

Application

Blind Hole Threading

Material Application

Steel

Overall Length (mm)

56.00

Trade Name

Druck 1-STEEL-SN-NT

Thread Direction

Right Hand

Series

BU921000

Thread Length (mm)

11.00

Thread Standard

UNF

Chamfer

Modified Bottoming

Class Of Fit

2BX

Coating/Finish

Nitride

Coolant Through

No

Flute By Diameter Ratio

3xD

Overall Length (Decimal Inch)

2.2047

Shank Diameter (Decimal Inch)

0.1410

Square Size (Decimal Inch)

0.1100

Tapping Depth (mm)

18.00

Thread Length (Decimal Inch)

0.4331

Thread Size (Inch)

#4-48

Vendor Drop Ship

Y

Chamfered Threads

2-3P

Material Application Code

P

Tapping Depth (Decimal Inch)

0.7087

Product Overview
Thread Forming Tap: #4-48 UNF, 2BX Class of Fit, Modified Bottoming, Cobalt, Nitride Coated 0.433" Thread Length, 2.205" OAL, Series Rekord Druck-S
