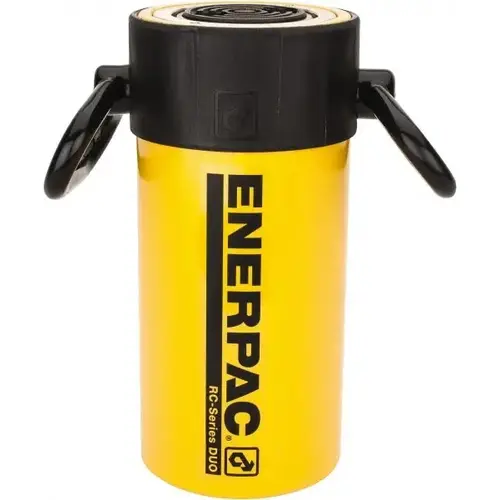

ENERPAC RC-506 RC Series Single Acting Cylinders, 50 tons, 6 1/4 in Stroke Length
Item #: RC-506 by ENERPAC
UPC #: 662005301645
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Type
Spring Return
Oil Capacity
69.03 cu in
UNSPSC
27121600
Collapsed Height
11.13 in
Stroke Length [Nom]
6 1/4 in
Capacity Wt. [Max]
50 tons
Operating Pressure [Max]
10,000 psi
Bore Diam [Nom]
3 3/4 in
Cylinder Effective Area
11.04 sq. in.
Extended Height [Nom]
17.38 in
Plunger Diam
3.13 in
Retracted Length
11.1300in
Extended Length
17.3800
Rod Diameter
3.1300in
Plunger Type
Solid
Body Material
Steel
Series
RC
Lowered Height
11.1300
Maximum Height (Inch)
17.3800
Vendor Drop Ship
N
Actuation
Single Acting
Collar Thread
5 - 12
Product Overview
Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity
Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan
Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
Features durable wiper to help prevent contamination from entering the cylinder during retract cycles
Trio Spring System for high-strength steel wire improves spring lift
Durable piston rod, high-strength steel plunger for improved life and sideload resistance
Collar threads, plunger threads, and base mounting holes enable easy fixturing
Hardened plunger saddle protects plunger end during all lifting operations and easily removed for access to plunger mounting threads.
Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan
Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
Features durable wiper to help prevent contamination from entering the cylinder during retract cycles
Trio Spring System for high-strength steel wire improves spring lift
Durable piston rod, high-strength steel plunger for improved life and sideload resistance
Collar threads, plunger threads, and base mounting holes enable easy fixturing
Hardened plunger saddle protects plunger end during all lifting operations and easily removed for access to plunger mounting threads.
