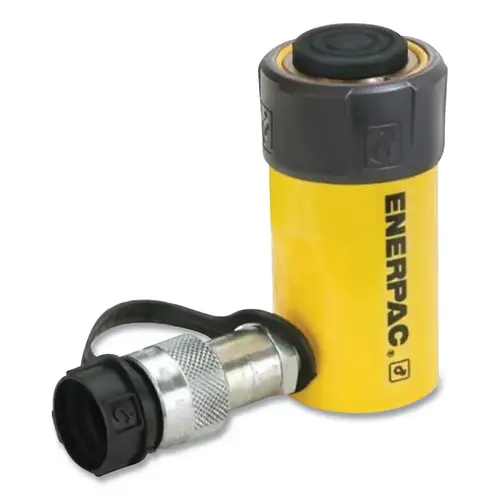

ENERPAC RC102 RC Series Single Acting Cylinder, 10 t, 2.13 in Stroke
Item #: RC102 by ENERPAC
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Type
Single-Acting; Spring Return
Collapsed Height
4.78 in
Stroke Length [Nom]
2.13 in
Capacity Wt. [Max]
10 t
Operating Pressure [Max]
10,000 psi
Cylinder Effective Area
2.24 in²
Extended Height [Nom]
6.91 in
Product Overview
Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity
Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan
Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
Features durable wiper to help prevent contamination from entering the cylinder during retract cycles
Trio Spring System for high-strength steel wire improves spring lift
Durable piston rod, high-strength steel plunger for improved life and sideload resistance
Collar threads, plunger threads, and base mounting holes enable easy fixturing
Hardened plunger saddle protects plunger end during all lifting operations and easily removed for access to plunger mounting threads.
Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan
Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
Features durable wiper to help prevent contamination from entering the cylinder during retract cycles
Trio Spring System for high-strength steel wire improves spring lift
Durable piston rod, high-strength steel plunger for improved life and sideload resistance
Collar threads, plunger threads, and base mounting holes enable easy fixturing
Hardened plunger saddle protects plunger end during all lifting operations and easily removed for access to plunger mounting threads.
