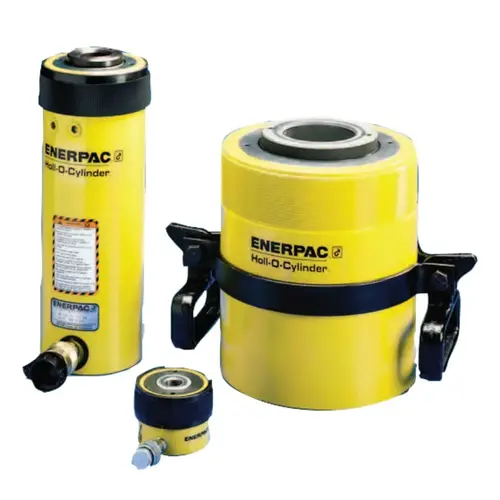

ENERPAC RCH-1003 RCH Series Hollow Plunger Cylinders, 100 tons, 3 in Stroke Length
Item #: RCH-1003 by ENERPAC
UPC #: 662005303090
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Type
Spring Return
Oil Capacity
61.88 cu in
UNSPSC
27121600
Collapsed Height
10 in
Stroke Length [Nom]
3 in
Capacity Wt. [Max]
100 tons
Operating Pressure [Max]
10,000 psi
Bore Diam [Nom]
6 1/2 in
Cylinder Effective Area
20.63 sq. in.
Extended Height [Nom]
13 in
Plunger Diam
5 in
Plunger Internal Thread
4 in - 16UN
Body Material
Steel
Mount Type
Base Mounting Hole
Vendor Drop Ship
N
Actuation
Single Acting
Extended Length (Inch)
13.0000
Retracted Length (Decimal Inch)
10.0000
Extending Length (mm)
330.00
Retracted Length (mm)
254.00
Product Overview
Baked enamel finish for corrosion resistance
Collar threads for easy fixturing
Hollow plunger design allows for both pull and push forces
Nickel-plated floating center tube on models over 20 tons increases product life.
Collar threads for easy fixturing
Hollow plunger design allows for both pull and push forces
Nickel-plated floating center tube on models over 20 tons increases product life.
