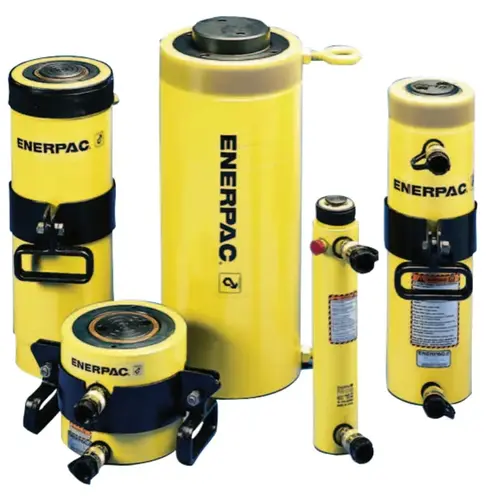

ENERPAC RRH-6010 RRH Series Hollow Plunger Cylinders, 60 tons, 10.12 in Stroke Length
Item #: RRH-6010 by ENERPAC
UPC #: 662005302994
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Type
Double-Acting
UNSPSC
27121600
Collapsed Height
17 1/4 in
Stroke Length [Nom]
10.12 in
Capacity Wt. [Max]
60 tons
Operating Pressure [Max]
10,000 psi
Bore Diam [Nom]
4.88 in
Cylinder Effective Area (Pull)
8.37 sq. in.
Cylinder Effective Area (Push)
12.73 sq. in.
Displacement
128.92 Cu. In./Cycle
Extended Height [Nom]
27.38 in
Plunger Diam
3.63 in
Plunger Internal Thread
2 3/4 in - 16
Oil Cap. (Pull)
84.49 cu in
Oil Cap. (Push)
128.94 cu in
Product Overview
Baked enamel finish for increased corrosion resistance
Collar threads enable easy fixturing (except RRH-1001 and RRH-1508)
Hollow plunger allows for both pull and push forces
Nickel-plated, floating center tube increases product life
Plunger wiper reduces contamination, extending cylinder life
Relief valves prevent damage in case of over-pressurization
Double-acting operation for fast retraction.
Collar threads enable easy fixturing (except RRH-1001 and RRH-1508)
Hollow plunger allows for both pull and push forces
Nickel-plated, floating center tube increases product life
Plunger wiper reduces contamination, extending cylinder life
Relief valves prevent damage in case of over-pressurization
Double-acting operation for fast retraction.
