30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Type
Spring Return
Oil Capacity
12.27 cu in
Plunger Diam
3.63 in
Extended Height [Nom]
4 in
Cylinder Effective Area
19.63 sq. in.
Bore Diam [Nom]
5 in
Operating Pressure [Max]
10,000 psi
Capacity Wt. [Max]
100 tons
Stroke Length [Nom]
0.63 in
Collapsed Height
3.38 in
UNSPSC
27121600
Body Material
Steel
Mount Type
Base Mounting Hole
Vendor Drop Ship
N
Actuation
Single Acting
Product Overview

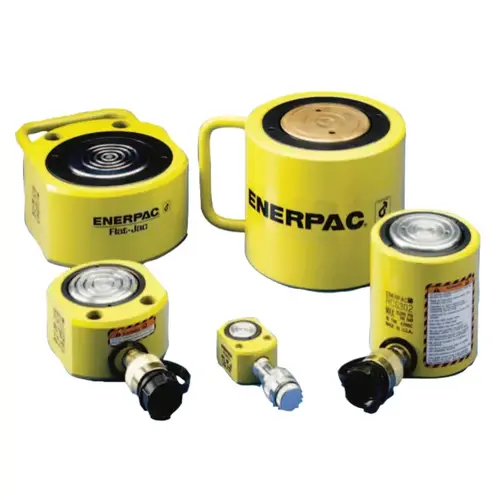

Compact, flat design for applications where other cylinders will not fit
Grooved plunger requires no saddle
Hard chrome plated high-quality steel plunger
Mounting holes for easy fixturing.
Grooved plunger requires no saddle
Hard chrome plated high-quality steel plunger
Mounting holes for easy fixturing.
