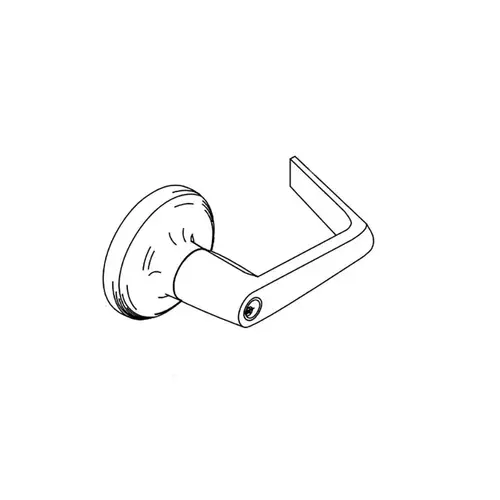

Yale B-AU4704LN 626 Entry Augusta Lever Grade 1 Cylindrical Lock with Small Format Interchangeable Core Prep Satin Chrome Finish
Item #: B-AU4704LN 626 by Yale
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ANSI / BHMA A156.2 Grade 1
- Door Thickness: 1-3/4" (44mm) to 2" (51mm); 1-3/8" (35mm) or 2-1/4" (57mm), please specify on order
- Strike: ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center.
- Backset: 2-3/4" (70mm)
- UL Fire Rated Up to 3 Hours
- Handing: Non-handed
- Installation: ANSI/BHMA A156.115(-W)
- ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000 Grade 1
- Adjustable from 1-3/8" to 1-3/4" Door Thickness
- 2-1/4" x 1-1/8" Beveled Front Standard
- Warranty: 5 year
- Non Handed
Finish
Satin Chrome
Function
04-Entry Lock
Series
4700LN Series
Design
Augusta
Strike
ANSI Strike
Backset
2-3/4" Backset
Thickness
1-3/4" - 2"
Strike Number
497
Package Volume
0
Latch Number
694
Latch Type
Dead Latch (Guarded)
ANSI Function
F82 - Entry
Hand
Not Handed
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Cylinder Type
SFIC Prep Less Core
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Screws
Combination
Bolt Protection
1/2"
Color Code
626/US26D
Strike Type
ASA
Rose/Escutcheon Design
3-1/2 In. Diameter
Base Material
Brass or Bronze
Strike Height
4-7/8"
Lever/Knob Design
AU - Augusta
Product Overview
Entry, Cylindrical Lock, AU Lever Design, SFIC Prep, Less Core, Satin Chrome
Yale 4700LN cylindrical locks are the idea choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL Fire Listed for all functions insuring reliability and peace of mind.
Your choice of a wide variety of commercial applications.
Ideal choice for a wide variety of grade 1 commercial applications where consistent quality, ease of use and installation are required at an economical price.
