Entry Lock Byron Satin Stainless Steel Finish with C Keyway, Adjustable Latch and Radius Strike

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

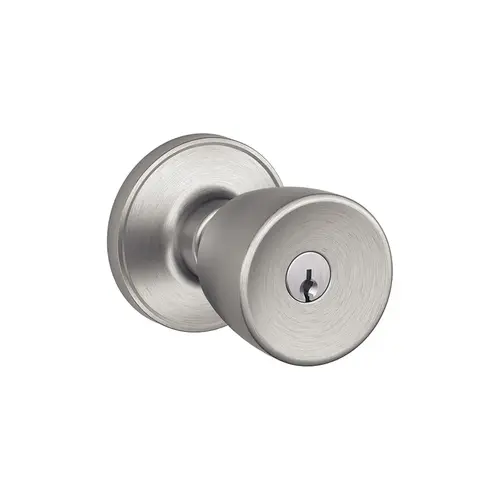

Schlage J Dexter Series J54BYR630 Entry Lock Byron Satin Stainless Steel Finish with C Keyway, Adjustable Latch and Radius Strike

Item #: J54BYR630 by Dexter by Schlage

Brand: Schlage J Dexter Series

UPC #: 043156742844

See reviewsSee reviews
See reviews summary
In Stock

$46.16

/each
SAVE UP TO 4.62
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 42 units available

Finish: Satin Stainless Steel

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
  • ANSI/BHMA A156.36 Grade 3
  • Reversible Handing
  • Includes All Mounting Hardware for Easy Installation
  • Lifetime Mechanical & 5 Year Finish Warranty

Finish

Satin Stainless Steel

Function

Entry

Series

J Series

Design

Byron

Handing

Reversible

Strike

Radius Full Lip Strike

Backset

Adjustable 2-3/8" or 2-3/4" Backset

Grade

ANSI/BHMA Grade 3

Application

Residential Single and Multi Family Doors

Warranty

Lifetime Mechanical; 5 yr Finish

Color Code

630/US32D

Keyway

Schlage C

Door Thickness

1-3/8" to 1-3/4"

Cylinder Type

Conventional Cylinder

Finish Description

Satin Stainless Steel

Latch Type

Dead

Product Height

2-5/8 Inch

Strike Type

Radius

ADA Compliant

No

Finish Family

Stainless Steel

Included Components

Keyed Entry Levers; Roses; Latch; Strike; Mounting Hardware

Knob style

BYR-Byron

Keyblank Grouping

SCHR-C-5-1

Rose/Escutcheon Trim

Round Rose

Door Cross Bore

2.125 Inch

Keying Charges

Residential-Conventional

Product Material

Zinc

Standards

ANSI/BHMA A156.2-2010

For Door Thickness

1-3/8" to 1-3/4"

Function Family

Entry/Entrance/Office

Product Projection

2.56 Inch

Features

Unlocked by Key From Outside When Outer Knob is Locked by Turn-Button in Inside Knob; Inside Knob is Locked and Unlocked by Turn-Button, Latch Triple Option(Square, Round, Drive in)

Product Type

Cylindrical Lock

Manufacturer Parent

Allegion

Door Edge Bore

1 Inch

Box Dimensions (L x W x H)

2.76x3.23x6.77

Knob Style Family

Tulip Knob

Sub-Series

RL_Knob_Locksets_Schlage_Residential_173

Dimension

2" Knob Diameter and 2-1/5" Projection with 2-5/8" Diameter Rose

Material

Stainless Steel

Manufacturer Warranty

Limited Lifetime Mechanical and 5 Year Finish Warranty

Rose/Escutcheon Design

Round Rose

Door Range

1-3/8" to 1-3/4"

Hazardous Material

No

Strike Dimension

2-1/4" x 1-5/8" x 1-1/8" Lip

Cross Bore Size

2-1/8" Bore

Finish code

630

Latch Faceplate Dimension

Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar

Lever Knob Design

Byron Knob

No of inners

1

No Of Pins

5 Pin Cylinder

Standard Latch

16-255: Dead Latch, Triple Option (Round, Square, Drive-in)

Lock Type

Cylindrical

Door Thickness Range

1-3/8" To 1-3/4"

Standard Strike

10-101: Round Corner Full Lip

Door Handing

Non-Handed

Electronic

No

Handle Design

Byron Knob

Keying

None (Select for Less Cylinder Options)

Handle Type

Knob

Keyed

Yes

ANSI/BHMA Standards

F82

Product Overview
J SeriesKnobs

Schlage believes that the "finishing touch" is just as important as the first. Which is why we make distinctive door hardware designed to match your personal style. From classic looks that never go out of style to bold contemporary designs, our door knobs fit and accentuate virtually any décor. Choose from interior door knob functions perfect for bedroom, bathroom, and closet doors or exterior keypad and locking knobs.

Available Functions: J10/F75 - Hall & Closet*:
  • Both knobs always unlocked
J40/F77 - Bed & Bath*:
  • Turn-button locking. Can be opened from outside by turning outside turn mechanism
  • From interior, turning inside turn-button releases inside knob
J170 - Non-turning*:
  • Inactive trim for one side of door
  • Used for door pull or as matching inactive trim
J54/F82 - Keyed Entry**:
  • Unlocked by key from outside when outer knob is locked by turn-button in inside knob
  • Inside knob is locked and unlocked by turn-button
  • *Non-keyed Locks
  • **Keyed Locks
Latches & Strikes: Keyed Latches - Dead Latches:
  • 16-255 - Triple Option (Round, Square, Drive-in) - Standard
  • 16-061 - UL Listed, Square Corne
Non Keyed - Spring Latches:
  • 16-254 - Dual Option (Round, Drive-in) - Standard
  • 16-070 - Triple Option Spring Latch for handlesets
Strikes:
  • 10-101 - Round Corner Full Lip - Standard
Specifications: Certification:
  • ANSI/BHMA A156 .2-2011 Commercial Grade 3
Latch:
  • Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
  • Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
Strike:
  • 1 5/8" x 2 1/4", radius corner, full lip, no box
Backset:
  • Adjustable for 2 3/8" or 2 3/4"
Cylinder:
  • 5-pin, C keyway, keyed alike (KA4)
Door Range:
  • 1 3/8" - 1 3/4"
Keys:
  • Two brass cut keys per lock, 5-pin, C section
Finishes: 605:
  • Bright Brass (US3)
609:
  • Antique Brass (US5)
619:
  • Satin Nickel (US15)
620:
  • Antique Pewter (US15A)
622:
  • Matte Black (US19)
625:
  • Bright Chrome (US26)
626:
  • Satin Chrome (US26D)
630:
  • Satin Stainless Steel (US32D)
716:
  • Aged Bronze
  • *Non-standard finishes are not available
  • Full-color swatch examples available on inside Levers tab
