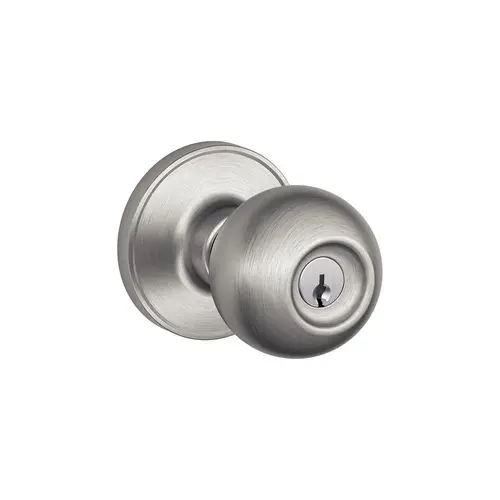

Schlage J Dexter Series J54CNA630 Entry Lock Corona Satin Stainless Steel Finish with C Keyway, Adjustable Latch and Radius Strike
Item #: J54CNA630 by Dexter by Schlage
UPC #: 043156742851
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
Finish
Satin Stainless Steel
Function
Entry
Series
J Series Corona
Design
Corona
Handing
Non-Handed
Strike
Radius Full Lip Strike
Backset
2-3/4", 2-3/8"
For Door Thickness
1-3/8" to 1-3/4"
Manufacturer Parent
Allegion
Finish Description
Satin Stainless Steel
Door Edge Bore
1 Inch
Knob Style Family
Ball Knob
Latch Type
Dead
Grade
Grade 3
Sub-Series
RL_Knob_Locksets_Schlage_Residential_174
ADA Compliant
No
Cylinder Type
5 Pin Cylinder
Door Cross Bore
2.125 Inch
Product Height
2-5/8 Inch
Application
Residential Single and Multi Family Doors
Box Dimensions (L x W x H)
2.76x3.23x6.77
Function Family
Entry/Entrance/Office
Standards
ANSI/BHMA A156.2-2011
Door Thickness
1-3/8" to 1-3/4"
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Product Projection
2.88 Inch
Knob style
CNA-Corona
Features
Unlocked by Key From Outside When Outer Knob is Locked by Turn-Button in Inside Knob; Inside Knob is Locked and Unlocked by Turn-Button
Product Material
Zinc
Color Code
630/US32D
Strike Type
Radius
Warranty
Lifetime Mechanical; 5 yr Finish
Keyway
Schlage C
Included Components
Keyed Entry Levers; Roses; Latch; Strike; Mounting Hardware
Finish Family
Stainless Steel
Strike Size
2-1/4" x 1-5/8"
Alternate Part Number-1
133095
Latch Bolt Type
Deadlatch
Knob/Lever Design
Corona
Latch Bolt Faceplate Size
2-1/4" x 1"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Drive-In, Round Corner, Square Corner
Latch Bolt Throw
1/2"
Rose/Escutcheon Style
Rose
Door Thickness Max
1-3/4"
Knob/Lever Style
Knob
Cylinder Included
Yes
Height
2.76
Length
6.69
Width
3.15
Dimension
2" Knob Diameter and 2-3/4" Projection with 2-5/8" Diameter Rose
Material
Stainless Steel
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
630
Latch Faceplate Dimension
Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Corona Knob
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
J SeriesKnobs
Schlage believes that the "finishing touch" is just as important as the first. Which is why we make distinctive door hardware designed to match your personal style. From classic looks that never go out of style to bold contemporary designs, our door knobs fit and accentuate virtually any décor. Choose from interior door knob functions perfect for bedroom, bathroom, and closet doors or exterior keypad and locking knobs.
Available Functions: J10/F75 - Hall & Closet*:- Both knobs always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside knob
- Inactive trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside when outer knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corne
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
