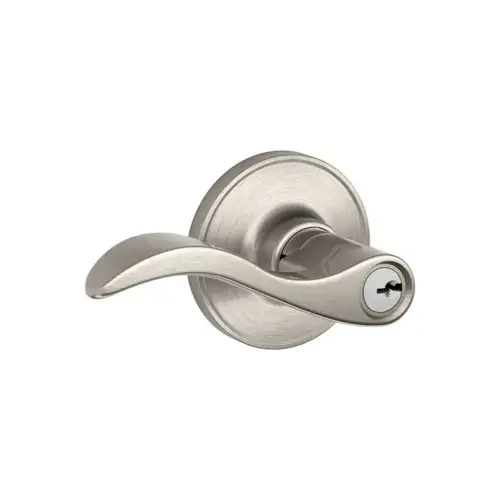

Schlage Residential J54 SEV 619 J Series J54 SEV 619 Entry Lever, Mechanical Lock, Satin Nickel, Lever Handle, Metal, Residential, Grade 3 Grade
Item #: J54 SEV 619 by Schlage Residential
UPC #: 043156121540
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
- Easy installation
- Fits all standard door preparations
- ADA Compliant: Yes
- ANSI/BHMA A156.36 Grade 3
- Keyed entry function
- Turn button locking, can be unlocked by key outside or by turn button inside
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Can be re-keyed to match existing locks or other locks purchased
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- UL Listed: Locks for up to three-hour fire doors available
Finish
Satin Nickel
Function
54-Keyed Entry
Series
J Series
Design
Seville
Handing
Reversible
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Style
Traditional
Warranty
5 Years Finish, Lifetime Mechanical
Manufacturer Warranty
Lifetime Mechanical and 5-Year Finish Warranties
Application Type
Entry
Assembled Depth (in.)
3.07
Assembled Height (in.)
5.71
Assembled Width (in.)
6.69
Backset size (in.)
Adjustable
Certifications and Listings
ANSI Certified
Commercial/Residential
Residential
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Keyed Levers
General Material
Metal
Hardware Finish Family
Nickel
Housing Width (in.)
2.63
Included
Hardware, Installation Instructions
Interior/Exterior
Interior/Exterior
Security/ANSI Grade
ANSI Grade 3 (Good)
Strike width (in.)
1.38
Features
Guaranteed To Fit On Existing, Standard Pre-Drilled Doors; Lever Design Pairs Well With Traditional Styles Like Antique Furniture As Well As More Modern Transitional Styles; Self-Aligning Screw Holes Make Installation Easy and Hassle-Free
Lock Type
Mechanical
Pack Size
1
Grade
ANSI/BHMA Grade 3
Keyway
Schlage C
Cylinder Type
5-Pin Standard Cylinder
Finish Description
Satin Nickel
Lever Style
SEV-Seville
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.7500
Door Thickness
1-3/8 to 1-3/4"
Bore Size
2.1250
Product Height
2-5/8 Inches
Product Length
4.1250
Included Components
(2) Brass Cut Keys
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
6.6900
Box Width
5.7100
Box Height
3.0700
UNSPSC
46171500
Application
Residential Single and Multi-Family Doors
Bolt Throw
1/2 Inch
Strike Type
Round Corner Full Lip
ADA Compliant
YES
Finish Family
Satin Nickel
Strike Size
1-5/8 x 2-3/4"
Standards
ANSI/BHMA A156.2-2010; ADA
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Both sides locked or unlocked by key outside or push button inside
Function Family
Entry/Entrance/Office
Product Projection
2-3/4 Inch
Latch Type
Deadlatch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.07x5.71x6.69
Lever Style Family
Wave Lever
Sub-Series
RL_Lever_Locksets_schlage_residential_307
Material
Metal
Dimensions
2.44 in L x 5.45 in W x 2.63 in H
Handle Type
Lever
Faceplate Size
1 x 2-1/4"
Backset Size
2-3/8 x 2-3/4"
Key Type
SC1
Keyway type
C
Security Grade
Grade 3
Number of Cylinders
1
Cross Bore Diameter
2-1/8"
Latch Housing Diameter
7/8"
Throw Length
1/2"
Nomenclature
J54SEV619 LEVER ENT SATNIC SEV
Bolt Throw Size
1/2"
Edge Bore Diameter
1"
Re-Key Technology
Traditional
Projection Size
1/2"
Dimension
4-1/2" Lever Length and 2-1/8" Projection with 2-5/8" Diameter Rose
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Seville Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
LEVER DOOR ENTRY SATNICSEVILLE
Specifications:
Specifications:
Application: For residential single and multi family doors
Seville lever keyed entry lock in satin nickel.
