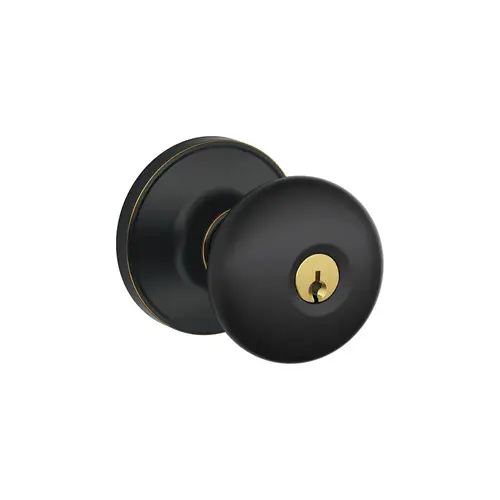

Schlage J Dexter Series J54STR716 Entry Lock Stratus Aged Bronze Finish with C Keyway, Adjustable Latch and Radius Strike
Item #: J54STR716 by Dexter by Schlage
Brand: Schlage J Dexter Series
UPC #: 043156895663
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Easy installation
- Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
- Fits all standard door preparations
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Keyed entry function
- turnbutton locking, can be unlocked by key outside or by turnbutton inside
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Can be rekeyed to match existing locks or other locks purchased
Finish
Aged Bronze
Function
Entry
Series
J Series Stratus
Design
Round
Handing
Reversible
Backset
2-3/8" or 2-3/4"
Strike
Radius Full Lip Strike
Grade
ANSI/BHMA Grade 3
Application
Residential Single and Multi Family Doors
Warranty
Lifetime Mechanical and 5 Years Finish
Color Code
643E/US11/716
Keyway
Schlage C
Door Thickness
1-3/8 to 1-3/4"
Cylinder Type
5-Pin Standard Cylinder
Finish Description
Aged Bronze
Latch Type
Deadlatch
Product Height
2-3/4 Inch
Strike Type
Round Corner Full Lip
ADA Compliant
No
Finish Family
Antique Bronze
Included Components
Keyed Entry Knobs; Roses; Latch; Strike; Mounting Hardware
Knob style
STR-Stratus
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Product Material
Zinc
Standards
ANSI/BHMA A156.2-2011
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Entry/Entrance/Office
Product Projection
2-1/2 Inch
Features
Unlocked by Key From Outside When Outer Knob is Locked by Turn-Button in Inside Knob; Inside Knob is Locked and Unlocked by Turn-Button
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
2.76x3.23x6.77
Knob Style Family
Round Flat Knob
Sub-Series
RL_Knob_Locksets_Schlage_Residential_176
Commercial/Residential
Residential
Strike Size
1-5/8 x 2-3/4"
Backset Size
2-3/8 2-3/4"
Key Type
SC1
Keyway type
C
Security Grade
Grade 3
Number of Cylinders
1
Cross Bore Diameter
2-1/8"
Latch Housing Diameter
7/8"
Throw Length
1/2"
Nomenclature
J54STR716 KNOB ENTR AG BRZ STR
Backset Type
Adjustable
Bolt Throw Size
1/2"
Edge Bore Diameter
1"
Re-Key Technology
Traditional
Projection Size
1/2"
Interior Locking
Yes
Material
Metal
Dimensions
2.38 in L x 2.63 in W x 2.63 in H
Handle Type
Knob
Faceplate Size
1 x 2-1/4"
Dimension
2-3/16" Knob Diameter and 2-5/16" Projection with 2-5/8" Diameter Rose
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
716
Latch Faceplate Dimension
Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Stratus Knob
No of inners
1
No Of Pins
5 Pin Cylinder
ANSI/BHMA Standards
F82
Keyed
Yes
Keying
None (Select for Less Cylinder Options)
Handle Design
Stratus Knob
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-101: Round Corner Full Lip
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Knob/Lever Design
STR - Stratus Knob
Standard Latch
16-255: Dead Latch, Triple Option (Round, Square, Drive-in)
Product Overview
KNOB DOOR ENTRY AGEDBRZSTRATUS
Specifications:
Specifications:
Application: For residential single and multi-family doors
Includes: Mounting Hardware
Stratus knob keyed entry lock in aged bronze.
