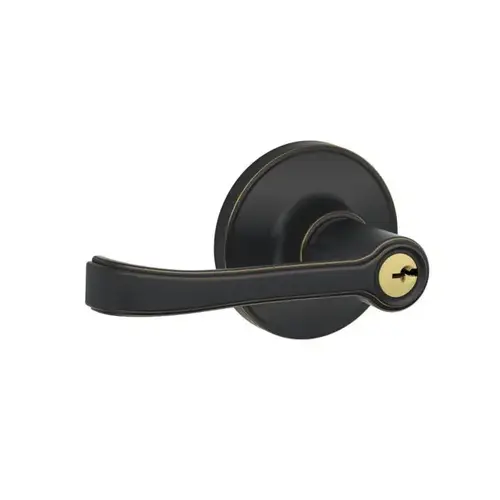

Schlage Residential J54 TOR 716 J Series J54 TOR 716 Entry Lever, Mechanical Lock, Aged Bronze, Lever Handle, Metal, Residential, Grade 3 Grade
Item #: J54 TOR 716 by Schlage Residential
UPC #: 043156895786
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
- Easy installation
- Fits all standard door preparations
- ADA Compliant: Yes
- ANSI/BHMA A156.36 Grade 3
- Keyed entry function
- Turn button locking, can be unlocked by key outside or by turn button inside
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Can be re-keyed to match existing locks or other locks purchased
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- UL Listed: Locks for up to three-hour fire doors available
Finish
Aged Bronze
Function
54-Keyed Entry
Series
J Series
Design
Torino
Handing
Reversible
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color
Antique Bronze
Color Code
643E/US11/716
Grade
ANSI/BHMA Grade 3
Keyway
Schlage C
Cylinder Type
5-Pin Standard Cylinder
Finish Description
Aged Bronze
Lever Style
TOR-Torino
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.8800
Door Thickness
1-3/8 to 1-3/4"
Bore Size
2.1250
Product Height
2-5/8 Inches
Product Length
4.0000
Included Components
(2) Brass Cut Keys
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
6.7700
Box Width
3.2300
Box Height
2.7600
Application
Residential Single and Multi-Family Doors
Warranty
5 Years Finish, Lifetime Mechanical
Bolt Throw
1/2 Inch
Strike Type
Round Corner Full Lip
ADA Compliant
YES
Finish Family
Antique Bronze
Strike Size
1-5/8 x 2-3/4"
Standards
ANSI/BHMA A156.2-2010; ADA
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Both sides locked or unlocked by key outside or push button inside
Function Family
Entry/Entrance/Office
Product Projection
2.8800 Inch
Latch Type
Deadlatch
Features
Guaranteed To Fit On Existing, Standard Pre-Drilled Doors; Lever Design Pairs Well With Transitional Styles Like Exotic Wood Grains And Neon Signs; Easy Installation With Screwdriver; Self-Aligning Screw Holes Make Installation Easy And Hassle-Free
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
2.76x3.23x6.77
Lever Style Family
Straight With Return Lever
Sub-Series
RL_Lever_Locksets_schlage_residential_310
Material
Metal
Dimensions
2.44 in L x 5.39 in W x 2.63 in H
Handle Type
Lever
Faceplate Size
1 x 2-1/4"
Backset Size
2-3/8 x 2-3/4"
Key Type
SC1
Keyway type
C
Security Grade
Grade 3
Number of Cylinders
1
Cross Bore Diameter
2-1/8"
Latch Housing Diameter
7/8"
Throw Length
1/2"
Nomenclature
J54TOR716 LEVER ENT AG BRZ TOR
Bolt Throw Size
1/2"
Edge Bore Diameter
1"
Re-Key Technology
Traditional
Projection Size
1/2"
Lock Type
Mechanical
Commercial/Residential
Residential
Dimension
4-1/2" Lever Length and 2-1/8" Projection with 2-5/8" Diameter Rose
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
716
Latch Faceplate Dimension
Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Torino Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
LEVER DOOR ENTRY AGBRZ TORINO
Specifications:
Specifications:
Application: For residential single and multi family doors
Torino lever keyed entry lock in aged bronze.
