Features
- ANSI / BHMA A156.2 Grade 2
- ANSI/BHMA Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
- Backset The 4600(LN) series cylindrical locksets are available with a 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset.
- UL Fire Rated Up to 3 Hours
- Adjustable from 1-3/8" to 1-3/4" Door Thickness
- Door thickness Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
- Universal Front for Both Flat and Beveled Door Edges
- Installation Fits ANSI/BHMA A156.115, which covers Hardware Preparation in Steel Doors and Frames and ANSI/BHMA A156.115-W for Wood Doors with Wood or Steel Frames.
- Latchbolts 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. See page 6 for optional latchbolts.
- Non Handed
- Strikes ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard for lever. T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard for knob. See page 7 for optional strikes.
- Warranty The 4600(LN) series cylindrical locks carry a three-year mechanical warranty
- Through-bolts 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
- Fire listings 4600(LN) series locksets are UL - cUL listed for use on fire doors having a rating up to and including 3 hours.
Finish
Satin Chrome
Function
Entry
Series
4600LN Series
Design
Monroe
Strike
1-1/4" Curved Lip
Backset
2-3/4" Backset
Color Code
626/US26D
Fire Rated
3 Hours {A}
Dimension
4-1/2" Lever Length; 2-1/2" Projection; 3-3/8" Rose Diameter
Material
Cast Zinc
Keyway
PARA Keyway
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Warranty
Limited 3 Year Warranty
Rose/Escutcheon Design
Round Rose
UL Listing Type
UL-cUL Fire Rated up to 3 Hours
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 2-1/4"
Cross Bore Size
2-1/8" Bore with Optional Thru Bolts
Finish code
626
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Monroe Lever
No of inners
1
No Of Pins
6 Pin
Product Overview

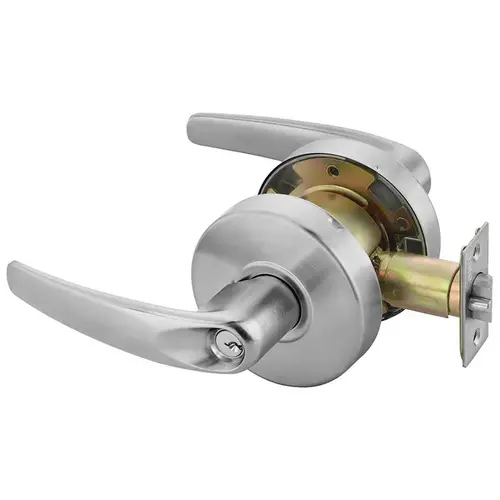

Entry, Cylindrical Lock, MO Lever Design, Satin Chrome
Yale 4600LN cylindrical locks are the idea choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL Fire Listed for all functions insuring reliability and peace of mind.
Ideal for commercial applications.
Ideal choice for a wide variety of grade 2 commercial applications where consistent quality, ease of use and installation are required at an economical price.
