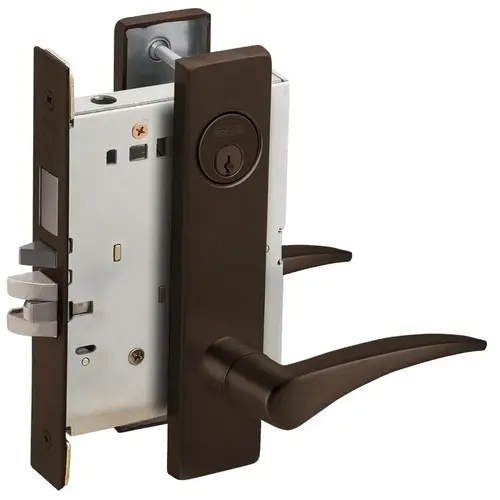

Schlage L9453P 12L 613 LH Entry / Office with Deadbolt Mortise Lock C Keyway with 12 Lever and L Escutcheon Left Hand Oil Rubbed Bronze Finish
Item #: L9453P 12L 613 LH by Schlage Commercial
Brand: Schlage
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Entry/Office Lock with Deadbolt, Latchbolt Retracted by Either Side, Locked by 20° Turn, Bolt Thrown by 90° Turn, Key or Handle Retracts Dead and Latchbolt, Locked Until Turn Restored Upright, Auxiliary Deadlocks Latchbolt, Inside Always Free
- Handing: L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
- Door Thickness: 1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Backset: 2-3/4” (70 mm) only.
- Lock Body Mortises Inside the Edge of the Door
- Armored Front: L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional. L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
- UL Listed for 3 Hour Fide Door
- Case Size: L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm) L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
- Spacing: Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).
- Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.
- Exposed Trim
- Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.
- Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
- Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
- Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
- Strike: L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
- Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
Handing
LH - Left Hand
Finish
613 - Oil Rubbed Bronze
Design
12 Lever and L Escutcheon
Series
L Series
Strike
10-072 Strike
Function
Entry / Office with Deadbolt
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Fire Rated
3 Hours {A}
Origin
Mexico
BAA Qualified
Yes
Package Height
5.625
Package Length
10.375
Package Volume
313.6816406
Package Width
5.375
Dimension
1-3/4" x 7-15/16" Escutcheon with 4-5/8" Lever and 3-1/16" Projection
Material
Zinc Base
Backset
2-3/4"
Keyway
C Keyway
Door Thickness
1-3/4"
Manufacturer Warranty
Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Rose/Escutcheon Design
L Escutcheon
UL Listing Type
UL Listed for 3 Hour Fire Door
Door Range
1-3/4"
Hazardous Material
No
Strike Dimension
4-7/8" with 1-1/4" Lip
Finish code
613
Latch Faceplate Dimension
1-1/4" x 8"
Lever Knob Design
12 Lever
No of inners
1
No Of Pins
6 Pin Keyway
Grade
Grade 1
ANSI/BHMA Standards
F20
Keyed
Yes
Handle Type
Lever
Collection
L9000 Series
Keying
None (Select for Less Cylinder Options)
Cylinder
P - Conventional Cylinder 6-pin (C Keyway)
Handle Design
12 Lever
Electronic
No
Lever/Knob Design
12 Lever
Door Handing
Handed
Standard Strike
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Substrate Type
CRS with Zinc Dichromate Plating
Door Thickness Range
1-3/4"
Lock Type
Mortise
Rose/Escutcheon
L - Full Face Escutheon
Duty Level
Heavy Duty
IMAP Policy
Yes
Mortise Case Size
4-7/16" x 6-1/16" x 1"
Standard Cylinder
Conventional 6-pin Cylinder, C Keyway
Projection
3-1/16"
Product Overview
Entrance Mortise Lock with Deadbolt, 12L Design, Oil Rubbed Bronze
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Lock bodies are field-reversible without disassembly
Schlage L Series Extra Heavy Duty, Grade 1 Mortise Locks are built to withstand the rigors of daily use without fail. Lock bodies are field-reversible without disassembly.
