30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from aluminum with a satin clear anodized finish for use in sliding door track systems.
- Measures 72" in length and is designed for 1/4" thick wood or glass door panels.
- Includes one 730 upper guide, two 743 shoes, one 723 double track, four 752 rollers, and four 771 clip guides.
- Complete assembly kit includes necessary glazing vinyl and mounting screws for installation.
- Recommended for small, light-weight door applications in hospitality and display shelving systems.
- Compatible with optional accessories such as 730 side jambs, locks, knobs, and pulls for custom setups.
- Requires a deduction of 1-7/32" from the opening height when calculating glass height for proper fit.
Length
6'
Door Thickness (in.)
1/4 in
Material Type
Aluminum
Length (in)
6 ft
Product Type
Sliding Door Hardware
Color/Finish
Aluminum
Product Overview

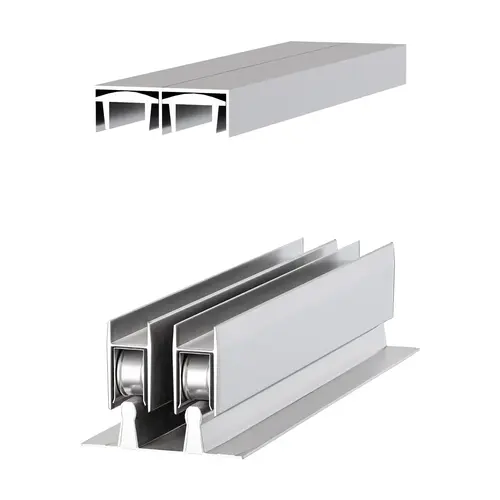

The 1/4" Aluminum track assembly Satin Clear Anodized-72" Length is a sliding door track system designed for 1/4" thick wood or glass doors. This assembly is constructed from aluminum and features a satin clear anodized finish. It is recommended for small, light-weight doors in hospitality and display shelving applications. The complete assembly includes one 730 upper guide, two 743 shoes, one 723 double track, four 752 rollers, four 771 clip guides, glazing vinyl, and mounting screws. The 730 upper guide and 771 clip guides assist in maintaining door alignment, while the 743 shoes and 752 rollers facilitate smooth sliding movement along the 723 double track. For glass height, deduct 1-7/32" from the opening height to ensure proper clearance. Side jambs, locks, knobs, and pulls are available as optional accessories to complete the installation. When using locks, side jambs must be used for the locking mechanism to be effective. This track assembly provides a functional solution for pass-thru windows and sliding door configurations.
