30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Multiple Users - 100 Codes
- 1,000 Audit Events
- Lock is Easily Programmed Via Keypad Without Removing Lock From the Door or With Optional Microsoft Excel Based Software
- Five Different Levels Allow Who Has Access to Specific Lock Functions
- Adjustable Code Length, Anti-Tamper Lockout, and Re-lock Time
Finish
Satin Brass
Function
Combination Entry
Series
2000 Series
Design
Long Lever
Strike
ASA and T-Strikes
Backset
2-3/4" Backset
Dimension
3-5/16" x 8-15/16"; 2-1/4" Projection
Use With
Cylindrical Lockset
Material
Brass
Keyway
Schlage C Keyway
Door Thickness
1-3/8" to 2-1/2"
Fire Rated
Yes
Manufacturer Warranty
3 Year Warranty from Date of Installation
UL Listing Type
UL10C
Power Supply
Wired
Door Range
1-3/8" to 2-1/2"
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Cross Bore Size
2-1/8" Bore
Finish code
606
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Chassis Type
Cylindrical Chassis
Lever Knob Design
Long Lever
No of inners
1
Product Overview

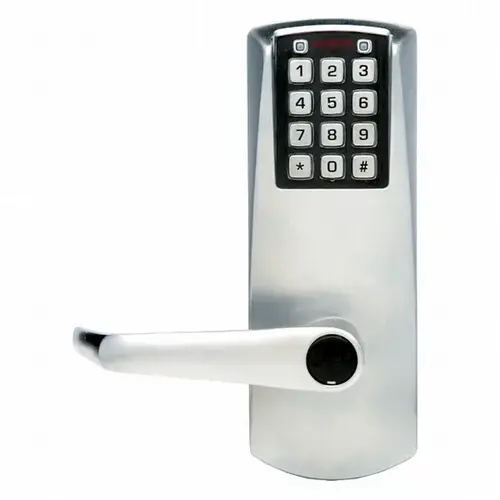

Eplex Cylindrical Electronic Pushbutton Lock with 1/2" Throw and 2-3/4" Backset, Key in Lever, Long Lever Satin Brass Finish
