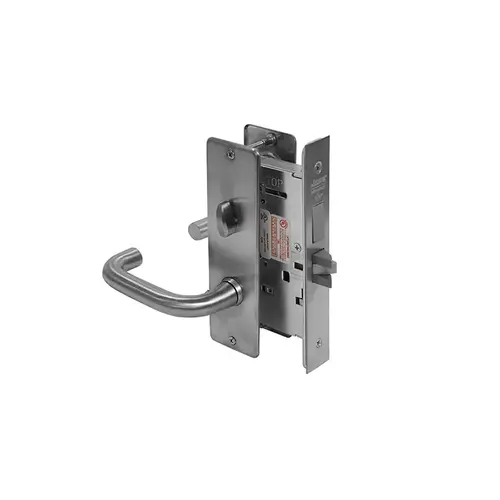

Corbin Russwin ML2030 LWA 626 ML2030 Mortise Privacy Lever Lockset, Satin Chrome

ML2000 SeriesMortise Locksets

The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1" stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

Further discourage intrusion and abuse with the ML2000VR (Vandal Resistant) Series mortise lock featuring vandal-resistant stainless steel escutcheons with tapered edges and Torx® pin tamper resistant screws. When matched with Corbin Russwin patented high-security Pyramid or Access 3® cylinders, any door can become a formidable barrier to intruders.

The ML2000 Series has a multi-function capability, allowing 12 functions to be configured from one lockbody. The ML2054 entrance function (ANSI F04) uses a universal lockbody with the ability to reconfigure into other functions without disassembling the lock case.

Complement any application with the full range of trim designs and finishes offered with ML2000 Series. From stainless steel security trims to bright brass Vineyard™ levers, design continuum can be achieved without forfeiting aesthetics.

Key Advantages:

• Patented Quick Reversible feature enables reversal of hands without disassembling the lock case

• Security trims provide a vandalresistant barrier

• Can be used with new or existing Corbin Russwin key systems. Also accepts cylinders of most other manufacturers.

• Provides life safety and security in a single door prep, saving the additional cost of a deadlock

• Thru-bolted trim designs for proper alignment and increased security

• Multi-function lockbody

• Status indicator options provide peace of mind on the locked/unlocked status of a door

Certification: ANSI/BHMA:

• Certified A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code

Federal:

• Meets FF-H-106C

UL/cUL-UL10C Positive Pressure:

• All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair (3 hour fire door). Letter F and UL symbol on armored front indicate listing.

California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)

• All levers with returns, return to within 1/2" (13mm) of door face

Windstorm/Hurricane:

• Certified (refer to local codes)

Specifications: Handing:

• Handed; quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness:

• 1-3/4" (44mm) standard

Backset:

• 2-3/4" (70mm)

Lockcase:

• Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)

Front:

• Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm)

Armored Front:

• Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000VR utilizes security Torx® screws

Latchbolt:

• 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw

Auxiliary Latchbolt:

• 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking

Deadbolt:

• One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw

Indicators:

• Status indicators available in sectional or escutcheon trim with many options providing clarity of the locked/unlocked status of a door.

Hub:

• Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm)
• Lever: steel, 5/16" (8mm). (Including VR)

Spacing:

• C. to c. knob/lever to cylinder: 3-5/8" (92mm)
• C. to c. knob/lever to thumbturn: 2-7/16" (62mm)

Strike:

• Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center

Cylinder:

• Brass, 6-pin, L4 keyway, 0-bitted standard

Keys:

• Two nickel silver standard

Warranty:

• Ten-year limited

Keying Features Available:

• Master keying
• Construction master keying
• Visual key control
• Concealed key control
• Plug only to show (concealed shell)
• 7-pin cylinder
• Security cylinder
• Access 3® cylinder
• Pyramid cylinder
• Interchangeable core (IC)
• Security IC
• Pyramid IC
• Access 3® IC
• Master ring cylinder
• Flex head cylinder
