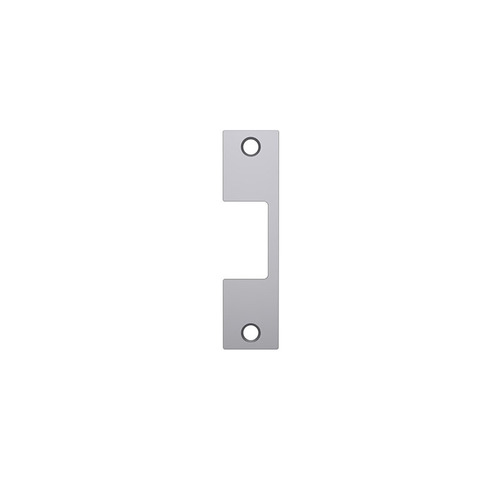

HES J 630 1006 Series Faceplate, Satin Stainless Steel
Item #: J 630 by HES
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For Use With All Cylindrical Locks Up To A 3/4" Throw And All Locks With Center Lined Bolts
- ANSI BHMA Numbers E09321, E09322, E09323
Material
Stainless Steel
Approved for Commercial Use
Yes
Product Class
Commercial
Height
4.875
Configuration
Faceplate
Width
1.25
exit device type
Cylindrical Locksets
Color
Satin Stainless Steel
Color Code
630/US32D
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
0.5
Package Length
9.5
Package Volume
9.5
Package Width
2
Finish
Satin Stainless Steel
Finish Description
Satin Stainless Steel
Product Type
Access Control Part/Accessory
Product Height
4-7/8 Inch
Product Width
1-1/4 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Function Family
Part/Component
Features
Operation: After Releasing the Latch bolt; the Keeper Returns to the Locked Position.
For Use With
1006 Series Cylindrical Locksets Up to 3/4" [19mm] Throw and All Locksets With Center-Lined Bolts.
Function
Faceplate
Manufacturer Parent
Assa Abloy
Sub-Series
PA_Electronic_Access_Control_Parts_hes_26
Handing
Non-Handed
Faceplate Size
4-7/8" x 1-1/4"
Alternate Part Number-1
105411
Throw
3/4"
Lockset Type
Cylindrical
Faceplate Style
Flat, Square Corner
Electric Strike Parts
Faceplate
- 4 7/8" x 1 1/4"
- For use with cylindrical locksets up to 3/4" throw and all locksets with center-lined bolts
- ANSI/BHMA Numbers: #E09321, #E09322, #E09323
- 4 7/8" x 1 1/4"
- For use with Mortise locksets with a deadlatch positioned below the latchbolt
- Compatible Locksets: Accurate, Arrow, Best, Corbin/Russwin, Falcon (1992 M Series), Sargent (7800, 8200 & 9200 series), Yale (8800) For Best 45H & 47H deadlatch below, and Best 34H - 37H deadlatch above
- ANSI/BHMA Numbers: #E09321, #E09322, #E09323
