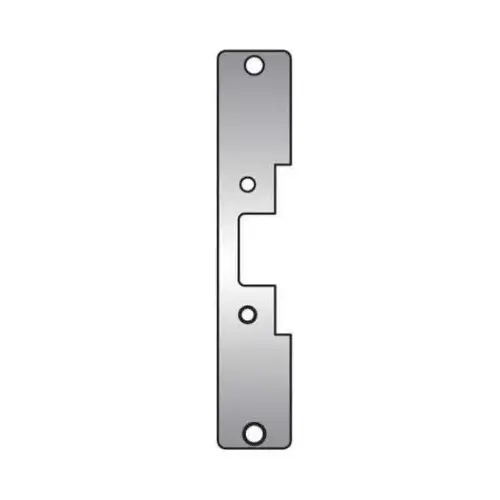

HES 502 605 5000/5200 Series Accessories - Standard and Specialty Faceplates Bright Polished Brass

Item #: 502 605 by HES

Brand: HES

UPC #: 740090510248

See reviewsSee reviews
See reviews summary
In Stock

$95.44

96.00 /each
SAVE UP TO 9.54
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available

Finish: Bright Polished Brass

Frame Application: Aluminum

Aluminum
Metal
Wood

Faceplate Size: 1-15/16 In. X 1-7/16 In.

1-15/16 In. X 1-7/16 In.
4-7/8 In. X 1-1/4 In.
6-7/8 In. X 1-1/4 In.
10" X 1-3/8"
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • For Use With Cylindrical Locksets
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • ANSI/BHMA A156.31, Grade 1
  • ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • Includes Universal Mounting Tabs
  • MEA New York City accepted
  • Patent #5,934,720
  • Aluminum Frames
  • Round Corner

Material

Stainless Steel

Approved for Commercial Use

Yes

Product Class

Commercial

Configuration

Faceplate

Width

1.4375

exit device type

Cylindrical Locksets

Height

7.9375

Grade

Grade 1

Color

Bright Brass

Color Code

605/US3

Fire Rated

No

Origin

USA

BAA Qualified

Yes

Package Height

0.5"

Package Length

9.5"

Package Volume

9.5

Package Width

2"

Faceplate Size

1-15/16 In. X 1-7/16 In.

Frame Application

Aluminum

Package Qty

1

Base Material

Brass

Switch Type

None

Finish

Bright Polished Brass

Finish Description

Bright Polished Brass

Product Type

Access Control Part/Accessory

Series

5000 Series

ADA Approved

False

Manufacturer Parent

Assa Abloy

For Use With

5000/5200 Cylindrical Locksets Or Spring Latch

Product Width

1-7/16 Inch

Function

Electric Strike Faceplate

Sub-Series

PA_Electronic_Access_Control_Parts_hes_9

ADA Compliant

No

Kit Contents

Universal Mounting Tab

Product Height

7-15/16 Inch

Application

Aluminum Frames

Function Family

Part/Component

Finish Family

Polished Brass

Substrate Type

Metal

Parts and Accessories Type

Installation Accessories

Faceplate

502 - Cylindrical Locksets or Spring Latches in Aluminum Frames

Windstorm Rated

No

Lock Type

Cylindrical

Preload Capable

No

Voltage

12/24 VDC

Outdoor Rated

Yes

Electronic

Yes

Product Overview

HES 5000/5200 FACEPLATES

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.


The 5000 Series is also available in a Complete One Box Solution:

  • 5000C Complete Pac

Frame application

  • Metal
  • Wood

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only

FEATURES AND BENEFITS

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor

Finishes

  • 630 - Satin stainless steel
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 629 - Bright stainless steel
  • BLK - Black
    *Complete Pacs are only available in the 630 finish

FACEPLATES & ACCESSORIES

Faceplate Options

  • 501 (4-7/8" x 1-1/4", square corners & flat faceplate)For use with cylindrical locksets in ANSI metal jambs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • 501A (4-7/8" x 1-1/4", radius corners & flat faceplate)For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMANumbers: #E09321, #E09322, #E09323
  • 502 (7-15/16" x 1-7/16", radius corners & flat faceplate)For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMANumbers: #E09321, #E09322, #E09323
  • 503 (6-7/8" x 1-1/4", radius corners & flat faceplate)For use with cylindrical locksets. Includes universal mounting tabs. ANSI/BHMANumbers: #E09321, #E09322, #E09323
  • 504 (10" x 1-3/8", radius corners & flat faceplate)For use with cylindrical locksets. Four point mounting for wood installations. ANSI/BHMANumbers: #E09321, #E09322, #E09323

Accessories

  • Three "press fit" stackable lip extensions:
  • 5104-1/2 - 1/2" stackable lip extension
  • 5104-1 - 1" stackable lip extension
  • 5104-1-1/4 - 1-1/4" stackable lip extension
  • HESCUT-MTK Metal template kit
  • 2001M - Plug-in bridge rectifier
  • 2004M - ElectroLynx adapter
  • 2005M3 - SMART Pac III
  • 2006M - Plug-in buzzer

CERTIFICATIONS & LISTINGS

  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • ANSI/BHMA A156.31, Grade 1
