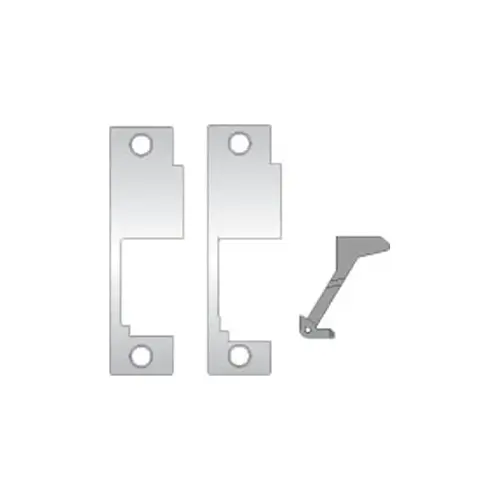

HES 852M 630 Faceplate 4-7/8" x 1-1/4" for Yale 8800, Accurate, Falcon, KABA Ilco/Unican, 8500 Series, 630/US32D Stainless Steel
Item #: 852M 630 by HES
Brand: HES
UPC #: 740090006000
See reviewsSee reviews
In Stock
$44.55
55.00 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 139 units available
Finish: Satin Stainless Steel
Use With: Mortise Locks by Yale, Accurate, Falcon, Kaba
Mortise Locks by Corbin
Mortise Locks by Sargent
Mortise Locks by Schlage
Mortise Locks by Yale, Accurate, Falcon, Kaba
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- For Use With Compatible Mortise Locksets: Yale 8700 & 8800, Accurate, Falcon, Kaba Ilco Unican
- ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
Material
Stainless Steel
Approved for Commercial Use
Yes
Product Class
Commercial
Height
4.875
Configuration
Faceplate
Width
1.25
exit device type
Mortise Lock Device
Use With
Mortise Locks by Yale, Accurate, Falcon, Kaba
Grade
Grade 1
Color
Satin Stainless Steel
Color Code
630/US32D
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
0.5"
Package Length
9.5"
Package Volume
9.5
Package Width
2"
Faceplate Size
4-7/8 In. X 1-1/4 In.
Frame Application
Metal or Wood
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Stainless Steel
Switch Type
None
Finish
Satin Stainless Steel
Finish Description
Satin Stainless Steel
Product Type
Access Control Part/Accessory
Series
8500 Series
Product Height
4-7/8 Inch
Product Width
1-1/4 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Function Family
Part/Component
Features
Operation: After Release; the Keeper Returns to the Locked Position.
For Use With
8500 Series Mortise Locks without Deadbolt
Function
Electric Strike Faceplate
Manufacturer Parent
Assa Abloy
Sub-Series
852M-630
Alternate Part Number-1
172690
Dimension
4-7/8" x 1-1/4"
Manufacturer Warranty
1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
Operating Voltage
Dual Voltage 12/24 VDC
UL Listing Type
UL 1034, UL294, UL10C
Hazardous Material
No
Finish code
630
No of inners
1
Voltage
12/24 VDC
Faceplate
852M - Mortise Locksets Faceplate
Electronic
Yes
Substrate Type
Stainless Steel
Static Strength
1500
Dynamic Strength
70 ft-lbs
Lock Type
Mortise or Cylindrical
Preload Capable
No
Outdoor Rated
Yes
Parts and Accessories Type
Installation Accessories
Windstorm Rated
No
Product Overview
HES 8500 FACEPLATES
The HES 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the HES 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the HES 8500 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The HES 8500 accommodates mortise latchbolts up to 3/4" throw.
Frame Application
- Metal
- Wood
Electrical
- .24 Amps @ 12VDC
- .12 Amps @ 24VDC
- DC continuous duty/AC intermittent duty only
Standard Features
- No cutting of the face of the frame
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 500,000 cycles
- Field selectable fail safe / fail secure
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Metal or Wood Frame
- Internally mounted solenoid
- Accommodates 3/4" mortise latchbolts
- Strike body depth 1-5/16"
- Plug-in connector
- Full pocket shims for horizontal adjustment
- Five year limited warranty
Optional Features
- 4 faceplate options
- Three deadlatch platforms to work with all major mortise locksets
- LBM - Latchbolt Monitor
- LBSM - Latchbolt Strike Monitor
Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
FACEPLATES & ACCESSORIES
Faceplate Options
The 8500 faceplate options kits combine two different faceplate pocket styles with three different deadlatch profiles for compatibility with a wide variety of mortise locksets. HES 8500 faceplate option kits are lock specific. There are two faceplates included in each kit: a standard faceplate and a faceplate with a wider pocket to address less-than-ideal sagging door conditions.
- 851M (4-7/8" x 1-1/4")For use with compatible mortise locksets: Sargent 7900, 8200, 9200 ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
- 852K (4-7/8" x 1-1/4", radius corners & flat faceplate)For use with compatible mortise locksets: Corbin Russwin ML 2000 ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323
- 852L (4-7/8" x 1-1/4")For use with compatible mortise locksets: Schlage L9000 ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323.
- 852M (4-7/8" x 1-1/4")For use with mortise locksets: Yale 8700* & 8800, Accurate, Falcon, Kaba Ilco/Unican ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323.
*Manufactured after 2005.
Accessories
- 2001M - Plug-in bridge rectifier
- 2004M - ElectroLynx adapter
- 2005M3 - SMART Pac III
- 2006M - Plug-in buzzer
CERTIFICATIONS & LISTINGS
- UL 10C-fire-rated, 3 hour (fail secure)
- CAN4-S104(ULC-S104) fire door conformant
- NFPA 80-07 Compliant
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- ANSI/BHMA A156.31, Grade 1
- NFPA -252 fire door conformant
- ASTM-E152 fire door conformant
