Features
- Built with steel operating mechanisms for durability
- Hardened steel latch bolts and sturdy aluminum push bars enhance toughness
- Optional hurricane device for the 1490 Series
- Three lengths, four functions and three finishes are available
- 1490 Series: certified to ANSI A156.3 Grade 1 standards
Color
Dark Bronze Anodized Aluminum
Color Code
313
Device Length
42 In.
Fire Rated
No
Device Type
Concealed Vertical Rod
Includes Trim
No
Physical Appearance
Pushpad
Product Type
Panics
Finish
DC13 - Dark Bronze Anodized Aluminum
Grade
Grade 1
ANSI/BHMA Standards
ANSI A156.3-2001
Stile Type
Narrow Stile
Handling
RHR - Right Hand-Reverse
Product Size
42"
Door Thickness Range
1-3/4"
Fasteners
All mounting screws are concealed
Product Projection
2-3/4"
Door Strike
PB48 top
Latch Specification
RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
Trim Hardware
Less Trim
Product Overview

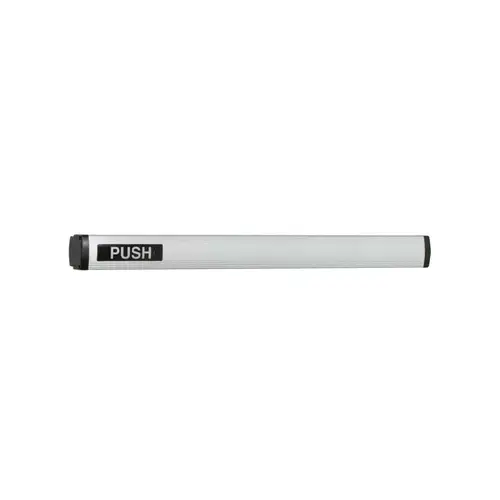

Concealed Vertical Rod Touchbar Exit Device, 42 In., Exit Only, Dark Bronze Anodized Aluminum
The 1490/1590 Series narrow stile touch bar exit devices provide safe and reliable egress ideal for 1-3/4 In. aluminum doors. The 1490 Series concealed vertical rod is designed for double door applications, while the 1590 Series rim device is designed for single door applications. The 1490 Series is certified to ANSI/BHMA A156.3 Grade 1 standards. Both products boast a 10-year limited warranty. The 1490/1590 Series are electrified to interface with building security systems. They also are suitable for retrofit applications with interior and exterior doors in commercial, multi-family, office and retail installations. For coastal code requirements, the 1490 Series exit devices provide a hurricane-rated door openings with select door manufacturers (consult the door manufacturer for more details). Hardened steel latch bolts and sturdy aluminum push bars enhance toughness. Options include three lengths, four functions and three finishes to cover any building needs.
Certified to ANSI/BHMA A156.3 Grade 1 standards.
