Features
- Built with steel operating mechanisms for durability
- Hardened steel latch bolts and sturdy aluminum push bars enhance toughness
- Three lengths, four functions and three finishes are available
- 1490/1590 Series: UL305 listed
Color
Black Anodized Aluminum
Color Code
315/335
Device Length
36 In.
Fire Rated
No
Device Type
Rim
Includes Trim
No
Physical Appearance
Pushpad
Product Type
Panics
Finish
DC35 - Black Anodized Aluminum
Grade
Grade 1
ANSI/BHMA Standards
ANSI A156.3-2001
Stile Type
Narrow Stile
Latch Throw
3/4"
Wood Door Compatible
No
Door Handing
Non-Handed
Handling
RHR - Right Hand Reverse
Product Size
36"
Door Thickness Range
1-3/4"
Fasteners
All mounting screws are concealed
Product Projection
2-3/4"
Door Strike
TD35 Strike supplied standard. STK45 optional
Trim Hardware
Less Trim
Product Overview

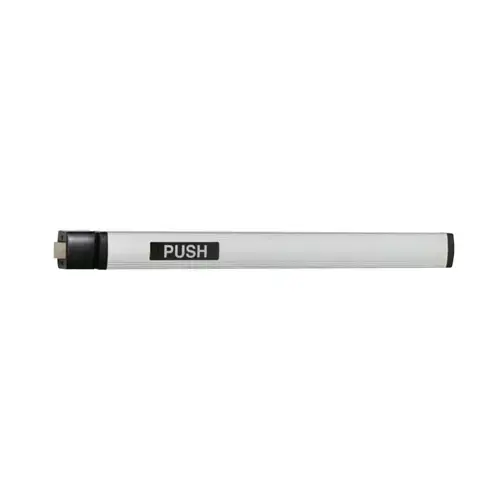

Rim Touchbar Exit Device, 36 In., Exit Only, Black Anodized Aluminum
The 1490/1590 Series narrow stile touch bar exit devices provide safe and reliable egress ideal for 1-3/4 In. aluminum doors. The 1490 Series concealed vertical rod is designed for double door applications, while the 1590 Series rim device is designed for single door applications. The 1490 Series is certified to ANSI/BHMA A156.3 Grade 1 standards. Both products boast a 10-year limited warranty. The 1490/1590 Series are electrified to interface with building security systems. They also are suitable for retrofit applications with interior and exterior doors in commercial, multi-family, office and retail installations. For coastal code requirements, the 1490 Series exit devices provide a hurricane-rated door openings with select door manufacturers (consult the door manufacturer for more details). Hardened steel latch bolts and sturdy aluminum push bars enhance toughness. Options include three lengths, four functions and three finishes to cover any building needs.
Electrified to interface with building security systems.
