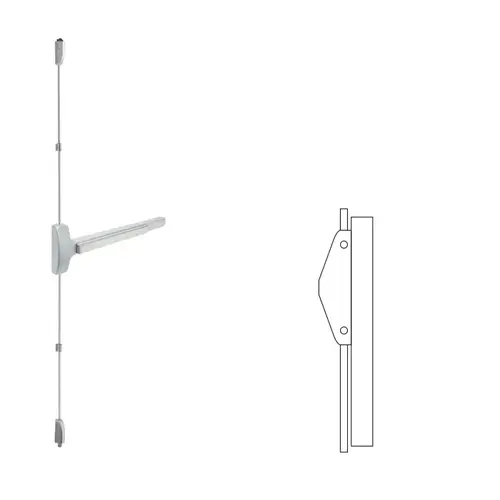

Falcon 25-V-EO-32D-48 25 Series Vertical Rod Exit Device

Item #: 25-V-EO-32D-48 by Falcon

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$1,156.02

/each
SAVE UP TO 115.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Door Height

7 Inch, 1-1/8 Inch x 2-1/4 Inch, Square Corner.

Manufacturer Parent

Allegion

Stile Width

3-1/2 Inch

Finish Description

Satin Stainless Steel

Latch Throw

Top 3/4"; Bottom 1/2"

Function

EO-Exit Only

Hand

Non-Handed

Sub-Series

25-V-EO-32D-48

Latchbolt Type

Standard With Top Latch Deadlocking

Device Centerline From Finished Floor

40-1/4 Inch

Center Case Dimensions

9" x 2-1/4" x 2-5/8"

Chassis Material

Aluminum

Application

High-Traffic

Device Type

Surface Vertical Rod

Device Trim Function

Exit Only

Door Width

36 Inch (3 Foot)

Standards

ANSI A156.3-2001 Grade 1; UL 10C Listed; Cul Listed

Device Bar Projection

2-3/4" Maximum; 2" Dogged

Device Length

48 Inch (4 Foot)

Door Thickness

1-3/4 inch

Product Type

Exit Device

Features

Surface-Applied Design; The Sleek Touch Bar Design Ensures An Attractive Installation

Color Code

630/US32D

Dogging Options

Hex Key Dogging

Mechanism Case Dimensions

2" x 2-1/4"

Door Material

Metal or Wood

Included Components

Fasteners and Sex Bolts

Finish Family

Stainless Steel

Product Overview
25-V SeriesVertical rod device

Panic exit hardware - High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon F-25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.

Specifications: Hand:
  • Field reversible.
Finishes:
  • US3 (605); US4 (606); US10 (612); US11 (643e); US15 (619); US19 (622); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN (710)
Strikes:
  • 3788 top strike is surface applied 2130 bottom strike is mortised into floor
Angle bracket:
  • Use 4215 angle bracket in flush transom installations Allows use of standard 3788 strike
Latchbolt:
  • Top stainless steel 3/4" throw. Bottom bolt, 1/2" throw.
Deadlocking latchbolt:
  • Standard in top latch.
Dogging feature:
  • Half turn hex dogging standard. No threaded parts to wear out.
Cylinder dogging:
  • Specify "CD" prefix. Uses 1 1/8" long mortise cylinder with standard cam.
Doors:
  • 1 3/4" thick, wood or metal. Specify thickness if other than 1 3/4".
Projections:
  • 2 3/4" maximum, 2" dogged.
Electric functions:
  • Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
Fasteners:
  • All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
Sex bolts:
  • Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
ANSI:
  • Certified ANSI A156.3-2001 grade 1 standards.
Vertical rods:
  • Furnished to length based on a 40 1/4" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
25-V-LBR:
  • Less bottom rod vertical device.
Shim kits:
  • For glass lite applications; 1/4" thick, specify SK25-V.
