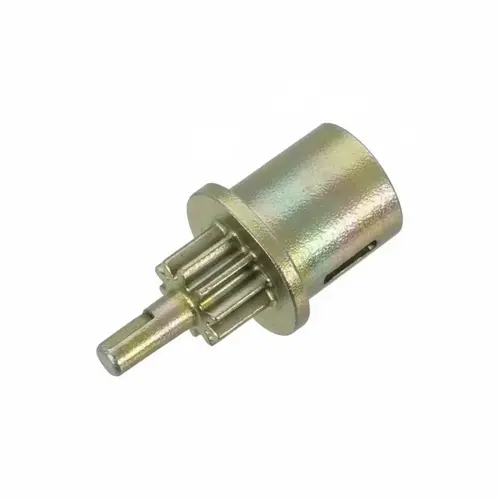

Falcon CAM-102 Pinion Cam Pack Metal Construction Dichromate Finish

Item #: CAM-102 by Falcon

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$13.76

/each
SAVE UP TO 1.38
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 304 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Metal construction supports the cam interface between cylinder and latch components for consistent action in corridor and commercial door hardware.
  • Overall length 1-1/4", width 5/8", and height 1/2" sized for compact cylinder cavities while providing adequate cam engagement clearance.
  • Connects to the key cylinder to translate rotational input into latch bolt retraction and release for straightforward keyed door operation.
  • Compatible with 1690, 1990, and 2090 series preparations where a pinion cam is required to couple the cylinder plug to the latch mechanism.
  • Intended for keyed door sets using mortise or similar cylinder-driven latching where a mechanical cam link is necessary for bolt travel.
  • Dichromate finish presents a neutral appearance and helps the metal surface resist handling marks during installation and routine service.
  • Installs within the cylinder/lock assembly using standard practices; verify cam orientation against series specification before closing up.

For Use With

1690, 1990, 2090 Series

Material

Metal

Finish

Dichromate

Overall Height

1/2" (13mm)

Overall Width

5/8" (16mm)

Product Length

1-1/4" (31mm)

Product Overview

This pinion cam is a cylinder part/accessory that links a key cylinder to the latch bolt, converting cylinder rotation into bolt retraction and release. Built from metal with a dichromate finish, the cam is sized at 1-1/4" length, 5/8" width, and 1/2" height for use inside compact cylinder or mortise cavities. It is specified for 1690, 1990, and 2090 series applications requiring a cam to couple the plug to the latch mechanism. The component ships in a pack of 10 to support multi-opening service work. It is a mechanical linkage only and is not an ADA compliance part; installation follows standard cylinder/lock assembly procedures with orientation confirmed per series specification.
