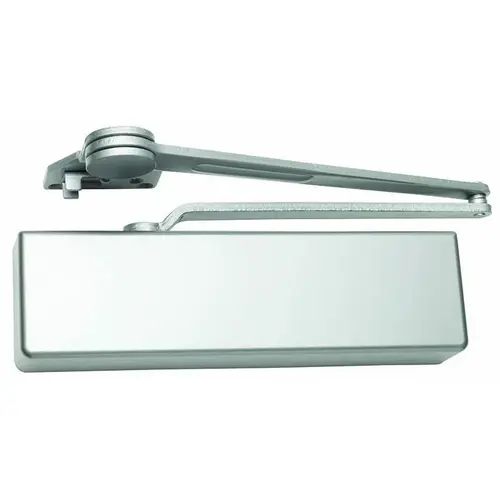

Falcon SC71A-DEL-RW/PA-AL SC70 Series Door Closer, Aluminum Painted
Item #: SC71A-DEL-RW/PA-AL by Falcon
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Aluminum Painted
Grade
ANSI/BHMA Grade 1
Spring Size
Adjustable 1-6
Function
Tri-Packed Non-Hold Open Arm
Mount
Push or Pull Side
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Manufacturer Parent
Allegion
Delayed Action
true
Handing
Non-Handed
Closer Piston Diameter
1-1/2 Inch
Closer Arm Type
Regular With Parallel Arm Shoe
Closer Options
Delayed Action
Product Width
2-1/8 Inch
Maximum Door Opening
180°
Hand
Non-Handed
Sub-Series
DC_Surface Mounted Closers_falcon_5
ADA Compliant
YES
Mounting Type
Push or Pull Side
Product Height
3-7/8 Inch
Application
Busy Commercial and Institutional Applications
Closer Cover
Full Plastic Cover
Function Family
Non Hold Open Door Closer
Standards
Grade 1 - ANSI/BHMA A156.4; ANSI A117.1; UL Listed
Door Size
Up to 3' 6" (Exterior); Up to 4' 6" (Interior)
Door Thickness
1-3/4 inch
Closer Fluid
All Weather Fluid
Features
Separate Adjustable General Speed Latch Speed and Backcheck
Product Material
Cast Aluminum (Body); Forged Steel (Piston)
Product Length
13-5/8 Inch
Closer Hold-Open
false
Warranty
10 Year
Included Components
Universal Screw Pack Including Self Reaming and Tapping Screws
Finish Family
Aluminum
SC70A SeriesDoor Closer
Falcon SC70A Series heavy duty closers are built for applications that demand reliable door control and easy maintenance. The SC70A Series closers are ANSI grade 1, ADA compliant and deliver tough performance. Choose the SC70A for interior or exterior doors in retail shops, restaurants, small offices and many other high traffic applications.
Standard features:- Fully adjustable sizes 1-6
- Separate adjustable general speed, latch speed and backcheck
- Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified
- Non-handed for left or right swinging doors
- 1 1/2" diameter heat treated steel piston
- Double heat-treated pinion
- Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws
- Staked valves
- Meets ANSI A117.1
- Listed ANSI/BHMA A156.4, grade 1
- UL listed and compliant to UL10C and UBC 7-2 (1997)
- Fast and easy installation
- 10-year warranty
- Available in aluminum, brass, dark bronze, and matte black
- The Falcon SC71A is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC71A is rated ANSI/BHMA A156.4, grade 1 and designed to meet the American Disabilities Act (ADA) and ANSI A117.1
- 622 - Matte black
- 689 - Aluminum
- 695 - Dark bronze
- 696 - Brass
