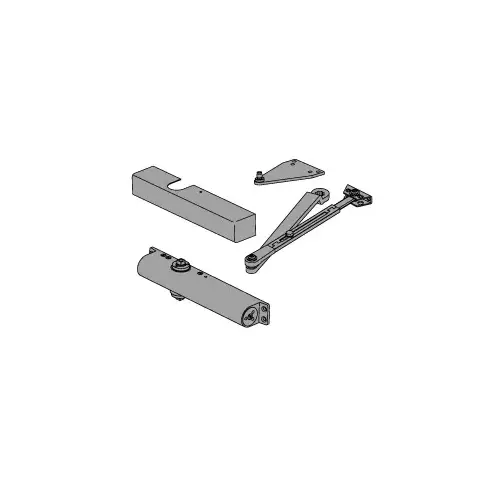

Falcon SC81A-RW/PA-SLIM-DKBRZ SC80 Series Door Closers, Dark Bronze Painted
Item #: SC81A-RW/PA-SLIM-DKBRZ by Falcon
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Dark Bronze Painted
Grade
ANSI/BHMA Grade 1
Spring Size
Adjustable 1-6
Closer Application
Surface
Function
Tri-Packed Non-Hold Open Arm
Mount
Push or Pull Side
Closer Size
1-6
Finish Description
Dark Bronze Painted
Closer Arm Configuration
Regular Arm w/Parallel Arm Shoe
Closer Arm Construction
Stamped
Closer Construction
Cast Aluminum
Closer Exterior Door Size
up to 3'6"
Closer Interior Door Size
up to 4'6"
Master Pack Length
16.0000
Master Pack Weight
61.0000
Master Pack Width
14.5000
Product Type
Door Closer/Holder/Stop
Series
SC80A Series
Box Length
13.5000
Box Width
5.0000
Box Height
3.5000
Manufacturer Parent
Allegion
Handing
Non-Handed
Closer Piston Diameter
1-1/4 Inch
Closer Arm Type
Regular With Parallel Arm Shoe
Product Width
2-1/4 Inch
Maximum Door Opening
180°
Hand
Non-Handed
Sub-Series
DC_Surface Mounted Closers_falcon_15
ADA Compliant
YES
Mounting Type
Push or Pull Side
Application
Light to Medium Duty Applications
Closer Cover
Slim Plastic Cover
Function Family
Non Hold Open Door Closer
Standards
Grade 1 - ANSI/BHMA A156.4; ANSI A117.1; UL Listed
Door Size
Up to 3' 6" (Exterior); Up to 4' 6" (Interior)
Door Thickness
1-3/4 inch
Closer Fluid
All Weather Fluid
Features
Heat Treated Steel Pinion and Piston; Separate Adjustable General Speed Latch Speed and Backcheck
Product Material
Cast Aluminum (Body); Steel (Piston)
Fastener Type
Universal Screw
Product Length
13 Inch
Closer Hold-Open
false
Warranty
10 Year
Included Components
Universal Screw Pack
Finish Family
Dark Bronze
Product Overview
Spring size Adjustable 1-6, Regular Arm with Parallel Arm Bracket, Slim Cover. DKBRZ Dark Bronze Painted
SC80 SeriesDoor Closers
SC80 SeriesDoor Closers
Medium-duty applications like retail storefronts, cafes and clinics that need a closer that makes door operation smooth and secure. The Falcon SC80A Series brings ANSI grade 1 durability and reliable performance to interior and exterior doors. An adjustable design ensures flexible installation and ADA compliance.
Standard features:- Single piece cast aluminum body
- Fully adjustable sizes 1-6
- Separate adjustable general speed, latch speed and backcheck
- Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified
- Non-handed for left or right swinging doors
- 1 1/4" diameter heat treated steel piston
- Heat-treated pinion
- Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming, and tapping screws
- Staked valves
- Meets ANSI A117.1
- ANSI/BHMA A156.4, grade 1
- UL listed and compliant to UL10C and UBC 7-2 (1997)
- Cover is UL approved for use in fire rated assemblies
- 10-year warranty
- Retrofittable to Norton 8000 hole pattern
- The Falcon SC81A is UL listed and compliant to UL10C and UBC 7-2 (1997). Additionally, the SC81A is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC81A is rated ANSI/BHMA A156.4, Grade 1.
- 622 - Matte black*
- 689 - Aluminum
- 695 - Dark bronze
- 696 - Brass
- *Available on the standard cylinder, RWPA arm, HWPA arm, and DS arm, HDPA arm.
