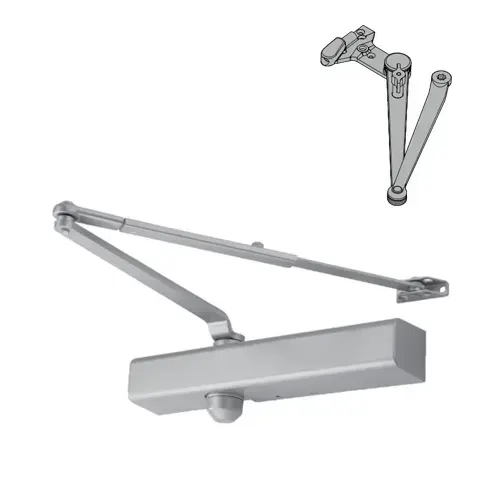

Falcon SC81ASSHOAL Medium Duty Surface Door Closer with Spring and Stop Hold Open Arm Aluminum Finish

Item #: SC81ASSHOAL by Falcon

Brand: Falcon

See reviewsSee reviews
See reviews summary

$456.64

/each
SAVE UP TO 45.66
Buying in bulk
Special Order*Usually ships in 1-2 weeks

Finish: Aluminum

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Finish

Aluminum

Product Type

Surface Closers

Grade

Grade 1

Cover

Slim Cover

Cylinder

Standard

BAA Qualified

Yes

ADA Compliant

YES

Door Handing

Non-Handed

Substrate Type

Aluminum

Arm

SSHO - Spring-n-Stop Hold Open Arm

Duty Level

Medium Duty

Product Overview

FALCON CLOSER SC81

TheSC80A Series is a medium-duty closer made for light- to medium-duty applications, both interior and exterior. It is ideal for side doors, closets and bathrooms in schools, retail shops, restaurants and small office buildings.

The closer s adjustable design provides flexible installation and ADA compliance, including adjustable spring sizes and a non-handed design. The SC80A Series also features 1-1/4" heat-treated steel pistons and heat-treated pinions. The single-piece aluminium body is designed and tested to ANSI/BHMA A156.4 Grade 1 standards and is also backed by a 10-year warranty.

FEATURES & BENEFITS

Body construction

  • Single-piece cast aluminium body
  • Heat-treated pinion and steel piston
  • Industry common hole pattern that retrofits to Norton 8000

Quality and durability

  • UL 10C approved fluid
  • Separate adjustable general speed, latch speed and backcheck
  • 10-year warranty

Installation

  • Universal non-handed
  • Universal screw pack
  • Adjustable spring sizes 1-6

SPECIFICATIONS

  • UL listed and compliant with the UL 10C and UBC 7-2 (1997) fire test
  • Tests to ANSI/BHMA A156.4 Grade 1 standards
  • The SC81A meets the American Disabilities Act (ADA) and ANSI A117.1

DESIGNS & FINISHES

  • Available in:
    • Aluminium
    • Dark bronze
    • Brass
    • Matte Black*
  • Standard non-handed slim line cover and optional non-handed full plastic cover

MOUNTING/ARM OPTIONS

The SC80A Series mounts hinge pull side, push side top jamb, push side parallel arm and hold open parallel arm.

REFERENCE NOTES:

1) SC81 delay action, SS, and SS/HO arms are not available in matte black.
2) SC81/SC81A ships standard with a SLIM Cover.
3) SC81/SC81A is fully adjustable 1-6

ALSO KNOWS AS

falcon sc81a, falcon sc81, falcon sc81a closer, falcon closer sc81, sc81a

IMPORTANT ORDERING INFORMATION:

SC81 - SS, SSHO and Delayed Action Cylinder Not Available in Matt Black (622)
