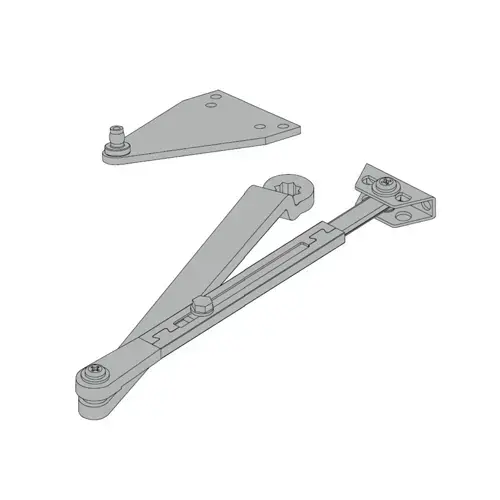

Falcon SC60A-3077/PA AL SC60A Series Door Closer Parts, Aluminum Painted
Item #: SC60A-3077/PA AL by Falcon
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Common industry hole pattern allows fast and easy retrofit installation without the need for plates or drilling new holes
- 1-3/8" diameter piston provides additional strength, durability and reliability
- Single-piece cast aluminum body minimizes leaks
- Staked valves prevent regulation valves from removal or leaking as a result of over-loosening
- Non-handed design provides ease of installation on either left- or right-swinging doors
- Separate adjustable general speed, latch speed and back check allows easy adjustment for changing climates and door conditions
- Falcon provides a 10-year limited warranty backed by Allegion, a global leader in fire and life safety products
Finish
Aluminum Painted
Grade
ANSI/BHMA Grade 1
Finish Description
Aluminum Painted
Product Type
Door Control Part/Accessory
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Finish Family
Aluminum
Series
SC60A Series
Product Material
Cast Aluminum
Features
Non-Handed Arm With Adjustable Forearm Assembly to Accommodate a Range of Doors and Frame Reveal Conditions; Pa Shoe Included to Allow Installation in a Parallel Arm Configuration
Function Family
Part/Component
Mounting Type
Hinge Side; Top Jamb; Parallel Arm
ADA Compliant
No
Sub-Series
PA_Door_Control_Parts_falcon_4
Hand
Non-Handed
For Use With
SC60A Series Door Closer
Handing
Non-Handed
Manufacturer Parent
Allegion
Product Overview
SC60A SeriesStandard-duty, Grade 1 door control
When you need a dependable closer for a light or medium-duty commercial application like a small boutique or office, the Falcon SC60A Series fits perfectly. Designed for interior use with aluminum storefronts and mix use complexes, the SC60A Series offers ANSI Grade 1 durability backed by a ten-year warranty. Since the SC60A has the most common hole pattern in the industry, it’s a versatile and easy choice for retrofit. The SC60A is another great example of how Falcon provides a solid product at a solid price.
Features:- Single piece cast aluminum body
- Fully adjustable sizes 1-5
- Separate adjustable general speed, latch speed and backcheck
- Industry common hole pattern retrofittable to Norton 1600
- Non-handed for left-or right-swinging doors
- Heat treated pinion and steel piston
- Staked valves
- Universal screw pack, now including SRTs screws
- Meets ANSI A117.1
- Certified ANSI/BHMA A156.4, Grade 1
- Cover is UL approved for use in fire rated assemblies
- UL listed and compliant to UL10C and UBC 7-2 (1997)
- 10-year warranty
- 689 - Aluminum
- 695 - Dark Bronze
