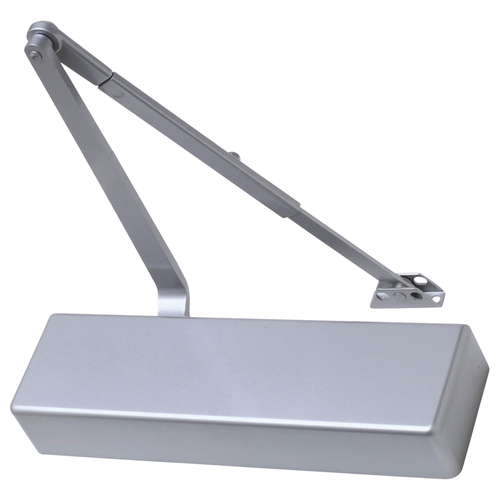

Falcon SC71A RwPA AL SC70 Series Door Closer, Aluminum Painted
Item #: SC71A RwPA AL by Falcon
UPC #: 043156648733
In Stock $276.85 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Single-piece cast aluminum body
- 1-1/2” diameter piston
- Heat-treated forged steel pinion
- UL 10C approved fluid
- Separate adjustable general speed, latch speed and backcheck
- 10-year warranty
- Universal non-handed
- Universal screw pack
- Adjustable spring sizes 1-6
- UL listed and compliant with the UL 10C and UBC 7-2 (1997) fire test
- Certified ANSI/BHMA A156.4 Grade 1
- The SC71 meets the American Disabilities Act (ADA) and ANSI A117.1
Type
Surface
Color
Aluminum Painted
Color Code
689/US28
Mounting Style
Tri Mount
Hold Open
Without Hold Open
Closer Size
Adj. 1 to 6
Mounting Location
Push or Pull Side
Finish
Aluminum Painted
Grade
ANSI/BHMA Grade 1
Spring Size
1-6
Function
Tri-Packed Non-Hold Open Arm
Mount
Push or Pull Side
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Product Height
3-7/8 Inch
Product Length
13-5/8 Inch
Product Width
2-1/8 Inch
ADA Compliant
YES
Finish Family
Aluminum
Included Components
Universal Screw Pack Including Self Reaming and Tapping Screws
Product Material
Cast Aluminum (Body); Forged Steel (Piston)
Closer Cover
Full Plastic Cover
Standards
Grade 1 - ANSI/BHMA A156.4; ANSI A117.1; UL Listed
Closer Arm Type
Regular With Parallel Arm Shoe
Closer Fluid
All Weather Fluid
Closer Piston Diameter
1-1/2 Inch
Function Family
Non Hold Open Door Closer
Features
Separate Adjustable General Speed Latch Speed and Backcheck
Application
Busy Commercial and Institutional Applications
Hand
Non-Handed
Handing
Non-Handed
Warranty
10 Year
Mounting Type
Push or Pull Side
Door Thickness
1-3/4 inch
Manufacturer Parent
Allegion
Closer Hold-Open
false
Closer Arm Family
Regular Non-Hold Open
Sub-Series
DC_Surface Mounted Closers_falcon_10
Door Size
Up to 3' 6" (Exterior); Up to 4' 6" (Interior)
Maximum Door Opening
180°
Falcon SC70A Series heavy duty closers are built for applications that demand reliable door control and easy maintenance. The SC70A Series closers are ANSI grade 1, ADA compliant and deliver tough performance. Choose the SC70A for interior or exterior doors in retail shops, restaurants, small offices and many other high traffic applications.
Standard features:- Fully adjustable sizes 1-6
- Separate adjustable general speed, latch speed and backcheck
- Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified
- Non-handed for left or right swinging doors
- 1 1/2" diameter heat treated steel piston
- Double heat-treated pinion
- Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws
- Staked valves
- Meets ANSI A117.1
- Listed ANSI/BHMA A156.4, grade 1
- UL listed and compliant to UL10C and UBC 7-2 (1997)
- Fast and easy installation
- 10-year warranty
- Available in aluminum, brass, dark bronze, and matte black
- The Falcon SC71A is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC71A is rated ANSI/BHMA A156.4, grade 1 and designed to meet the American Disabilities Act (ADA) and ANSI A117.1
- 622 - Matte black
- 689 - Aluminum
- 695 - Dark bronze
- 696 - Brass
