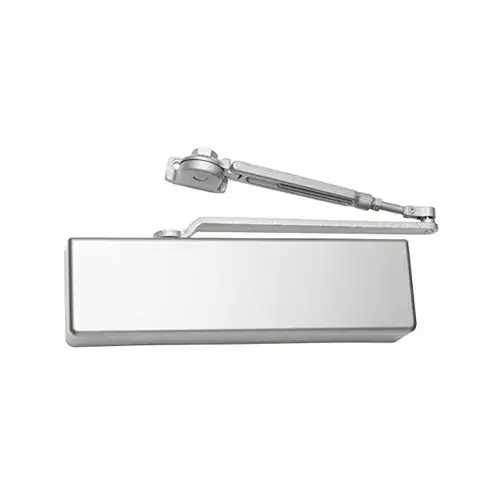

Falcon SC71A HwPA AL Heavy Duty Hold Open Surface Door Closer with PA Bracket Aluminum Finish

Item #: SC71A HwPA AL by Falcon

UPC #: 043156123506

See reviewsSee reviews
See reviews summary
In Stock

$282.67

/each
SAVE UP TO 28.27
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 106 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Single-piece cast aluminum body
  • 1-1/2” diameter piston
  • Heat-treated forged steel pinion
  • UL 10C approved fluid
  • Separate adjustable general speed, latch speed and backcheck
  • 10-year warranty
  • Universal non-handed
  • Universal screw pack
  • Adjustable spring sizes 1-6
  • UL listed and compliant with the UL 10C and UBC 7-2 (1997) fire test
  • Certified ANSI/BHMA A156.4 Grade 1
  • The SC71 meets the American Disabilities Act (ADA) and ANSI A117.1

Type

Surface

Color

Aluminum Painted

Color Code

689/US28

Mounting Style

Tri Mount

Hold Open

With Hold Open

Closer Size

Adj. 1 to 6

Mounting Location

Push or Pull Side

Finish

Aluminum Painted

Grade

ANSI/BHMA Grade 1

Spring Size

1-6

Function

Tri-Packed Hold Open Arm

Mount

Push or Pull Side

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

Series

SC70A Series

Manufacturer Parent

Allegion

Handing

Non-Handed

Closer Piston Diameter

1-1/2 Inch

Closer Arm Type

Hold Open With Parallel Arm Shoe

Product Width

2-1/8 Inch

Maximum Door Opening

180°

Hand

Non-Handed

Sub-Series

DC_Surface Mounted Closers_falcon_9

ADA Compliant

YES

Mounting Type

Push or Pull Side

Product Height

3-7/8 Inch

Application

Busy Commercial and Institutional Applications

Closer Cover

Full Plastic Cover

Function Family

Hold Open Door Closer

Standards

Grade 1 - ANSI/BHMA A156.4; ANSI A117.1; UL Listed

Door Size

Up to 3' 6" (Exterior); Up to 4' 6" (Interior)

Door Thickness

1-3/4 inch

Closer Fluid

All Weather Fluid

Features

Separate Adjustable General Speed Latch Speed and Backcheck

Product Material

Cast Aluminum (Body); Forged Steel (Piston)

Fastener Type

Universal Screw

Product Length

13-5/8 Inch

Closer Hold-Open

true

Warranty

10 Year

Included Components

Universal Screw Pack Including Self Reaming and Tapping Screws

Finish Family

Aluminum

Load Capacity

5 lb

Door Width

54

Includes

Tapping Screw

Performance

Heavy-Duty

Arm Type

Hold Open Parallel

Damper Type

Door Closer

Operation Type

Manual

Hand Orientation

Non-Handed

Housing Material

Cast Aluminum

Mount Type

Pull Side

Product Service Code

5340

Vendor Drop Ship

Y

Housing Length (Decimal Inch)

13.6250

Maximum Opening

180 degrees

Housing Depth (Decimal Inch)

2.1250

Full Cover

Yes

Housing Height (Decimal Inch)

3.8750

MADE IN THE USA

Yes

Security Grade

ANSI Grade 1

Package Quantity

1

UL Listed

No

Door Handing

Non Handed

Hardware Included

True

Hex Key Dogging

False

AbilityOne

No

Lever/Pull Included

True

UNSPSC

30171514

Commercial/Residential

Commercial

Hinge Type

Door Closer

Interior/Exterior

Interior/Exterior

Material

Aluminum

Assembled Product Width

5.5 in.

Adjustable

True

GSA Approved

No

TAA/BAA Compliant

Yes

Product Overview
SC70A SeriesDoor Closer

Falcon SC70A Series heavy duty closers are built for applications that demand reliable door control and easy maintenance. The SC70A Series closers are ANSI grade 1, ADA compliant and deliver tough performance. Choose the SC70A for interior or exterior doors in retail shops, restaurants, small offices and many other high traffic applications.

Standard features:
  • Fully adjustable sizes 1-6
  • Separate adjustable general speed, latch speed and backcheck
  • Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified
  • Non-handed for left or right swinging doors
  • 1 1/2" diameter heat treated steel piston
  • Double heat-treated pinion
  • Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws
  • Staked valves
  • Meets ANSI A117.1
  • Listed ANSI/BHMA A156.4, grade 1
  • UL listed and compliant to UL10C and UBC 7-2 (1997)
  • Fast and easy installation
  • 10-year warranty
  • Available in aluminum, brass, dark bronze, and matte black
Listings and ratings:
  • The Falcon SC71A is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC71A is rated ANSI/BHMA A156.4, grade 1 and designed to meet the American Disabilities Act (ADA) and ANSI A117.1
Available finishes:
  • 622 - Matte black
  • 689 - Aluminum
  • 695 - Dark bronze
  • 696 - Brass
