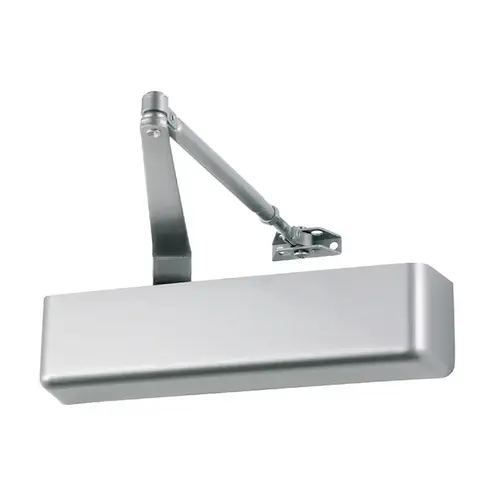

Falcon SC81A RwPA AL FC SC81A Door Closer Damper: 5 lb Load Capacity, 48" Door Width
Item #: SC81A RwPA AL FC by Falcon
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Tri-mount capability fits a variety of applications. For ease of installation, the closer mounts hinge side, top jamb or parallel arm when either RW/PA or HW/PA arm is specified
- Adjustable spring sizes from 1 to 6 account for changing door conditions with field adjustable spring sizes to assure your door latches but doesn’t slam
- 1-1/4" diameter piston provides additional strength, durability and reliability
- Single-piece cast aluminum body minimizes leaks
- Non-handed design provides ease of installation on either left- or right-swinging doors
- Separate adjustable general speed, latch speed and back check provide simple and quick field adjustability to ensure smooth door opening and closing
- Falcon provides a 10-year limited warranty backed by Allegion, a global leader in fire and life safety products
Type
Surface
Color
Aluminum Painted
Color Code
689/US28
Mounting Style
Tri Mount
Hold Open
Without Hold Open
Closer Size
Adj. 1 to 6
Mounting Location
Push or Pull Side
Finish
Aluminum
Load Capacity
5 lb
Door Width
48
Includes
Tapping Screw
Performance
Medium-Duty
Arm Type
Parallel
Damper Type
Door Closer
Operation Type
Manual
Standards
ANSI/BHMA A156.4
Hand Orientation
Non-Handed
Housing Material
Cast Aluminum
Series
SC81A
Mount Type
Push,Pull Side
Product Service Code
5340
Vendor Drop Ship
Y
Housing Length (Decimal Inch)
13.0000
Maximum Opening
180 degrees
Housing Depth (Decimal Inch)
2.3750
Full Cover
Yes
Housing Height (Decimal Inch)
2.4375
MADE IN THE USA
No
Security Grade
ANSI Grade 1
Package Quantity
1
UL Listed
No
Door Handing
Non Handed
Hardware Included
True
Hex Key Dogging
False
AbilityOne
No
ADA Compliant
No
Lever/Pull Included
True
UNSPSC
30171514
Commercial/Residential
Commercial
Application
Door Close
Hinge Type
Door Closer
Interior/Exterior
Interior/Exterior
Material
Aluminum
Adjustable
True
GSA Approved
No
TAA/BAA Compliant
Yes
Product Overview
SC80 Series Medium Duty Closer, Regular Arm, with PA Bracket, FULL Cover, Aluminum Painted
The SC80A Series is a medium-duty closer made for light- to medium-duty applications, both interior and exterior. It is ideal for side doors, closets and bathrooms in schools, retail shops, restaurants and small office buildings. The closerÃs adjustable design provides flexible installation and ADA compliance, including adjustable spring sizes and a non-handed design. The SC80A Series also features 1-1/4 In. heat-treated steel pistons and heat-treated pinions. The single-piece aluminum body is designed and tested to ANSI/BHMA A156.4 Grade 1 standards and is also backed by a 10-year warranty.
Deliver durability and smooth and reliable performance for interior and exterior medium-traffic applications.
