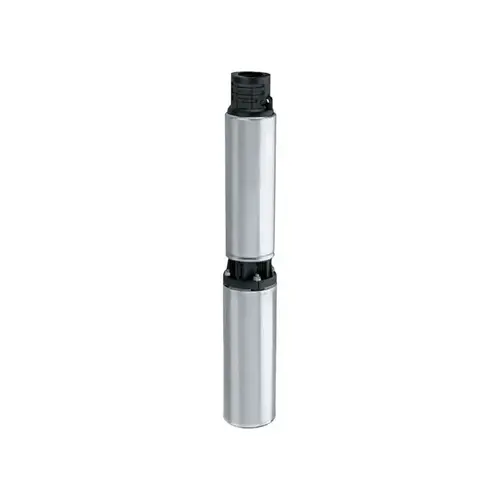

Flotec FP2222-13 FP2222 Well Pump, 1-Phase, 15 A, 230 V, 0.75 hp, 1-1/4 in Connection, 200 ft Max Head, 14.9 gpm, Stainless Steel
Item #: FP2222-13 by PENTAIR WATER-FAIRBANKS SIMER
UPC #: 022315100817
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 4 in inside diameter or larger wells
- 4 in submersible pumps are the most economical, energy efficient pumps for 4 in wells or larger
- Provide the optimum amount of water and pressure for general home and farm use
- Pumps from depths of 150 ft
- Floating stack design for sand resistance and reduced sand locking
- Corrosion-resistant stainless steel pump and motor housing
- Pumps up-to 10 gal per minute
Height
34"
Volts
230 V
Horsepower
3/4 HP
Powered By
AC
Maximum Temperature
140 °F
Pump Type
Deep
Self Priming
Self-Priming
Hardware Included
No
Agency Compliance
CSA and UL
Corrosion Resistant
Yes
Defective Code
A
Each Weight
29.300 LB
Hazardous Material
No
Maximum Discharge Flow
600 gph
Maximum Feet of Head
200 ft.
Minimum Temperature
35 °F
Pump Switch Type
Switchless
Returnable
Yes
Velocity
X
Wiring Configuration
2 wire
With Tank
No
Housing Material
Stainless Steel
Product Type
Well Pump
Material
Stainless Steel
Connection Size
1-1/4"
Maximum Head
200 ft
Number of Phases
1
Frequency Rating
60 Hz
Pressure rating
127 psi
HP Rating
0.75 hp
Nomenclature
FP2222-13 SUBMERSIVE PMP 3/4HP
Current Rating
15 A
Connection Type
NPT
Specifications:
Includes: Detailed Owners Manual
Suitable for: 4 in ID or Larger Wells
4 in submersible pumps are the most economical, energy-efficient pumps for 4 in wells or larger. They provide the optimum amount of water and pressure for general home and farm use.
