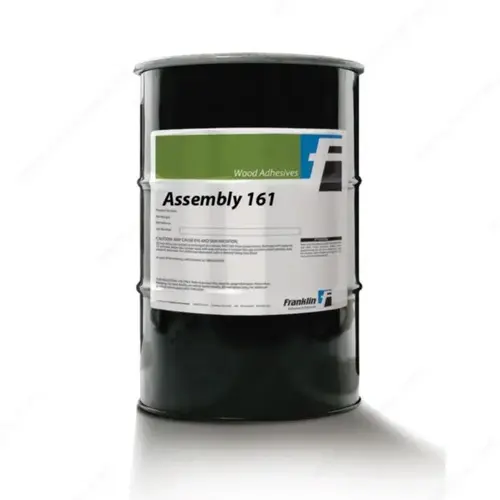

Franklin Industrial WEBSO1246026 ASSEMBLY 161 - DOWELLING
Item #: WEBSO1246026 by Franklin Industrial
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Packaging Format
Per unit
Production Time
Special online order - 14 days
Weight
496 lb
Recommended Use
Particleboard, MDF, Plywood
Base
Polyvinyl Acetate Emulsion
Viscosity
100 - 150 cps
Product Overview
Assembly 161 is a low viscosity polyvinyl acetate emulsion developed for use with automatic doweling equipment. Its properties allow the adhesive to easily flow through the narrow feed lines and injectors of European-made doweling machinery. Assembly 161 sets fast to reduce assembly time, offers excellent strength and provides a translucent glue line. It is formulated for use on solid woods, particleboard, MDF, plywood and other porous materials.
Advantages And Benefits
KEY PRODUCT FEATURES
- Very low viscosity for automatic doweling machines
- Formaldehyde free
- Sets fast
- Translucent glue line
- Meets the definition of NAF for CARB and TSCA Title VI
- 175.105 FDA Compliant
Application
Preparation of stock to be glued is extremely important. Joints cut from rip saws should be free of saw marks. They should also be straight and square. Molded or jointed stock should be free of knife marks. Glazed or burnished joints will prevent adhesive penetration and should be avoided.
Gluing stock should be uniform in thickness. Variation in thickness should not exceed 0.005 in/0.12 mm.
Sanding to thickness should be performed using higher than 50 grit abrasives. When possible, glue joints should
be prepared and glued the same day.
Spreads of 35-50 pounds of adhesive per 1,000 square feet or 170-250 grams per square meter of glue line are adequate. Verify adequate glue coverage by monitoring for squeeze out along the glue line once the panels are under pressure.
