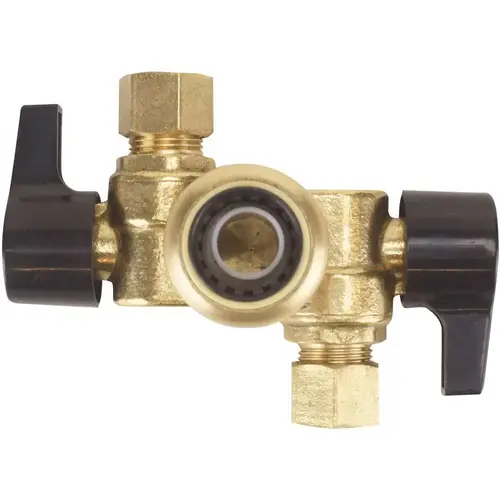

Tectite FSBDVO1238C 1/2 in. Brass Push-To-Connect x 3/8 in. O.D. Compression Dual Opposed Outlet Dual Shut-Off Quarter-Turn Stop Valve
Item #: FSBDVO1238C by Tectite
UPC #: 191988003876
$47.16 /each
Buying in bulk

Roll over image to zoom in
Tectite FSBDVO1238C 1/2 in. Brass Push-To-Connect x 3/8 in. O.D. Compression Dual Opposed Outlet Dual Shut-Off Quarter-Turn Stop Valve
Item #: FSBDVO1238C by Tectite
UPC #: 191988003876
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Material
Brass
Warranty
5 Years: Must be installed per published installation instructions.
Color
Brass
Pack Size
1
Indoor/Outdoor
Indoor
Product Depth (in.)
1.567
Product Height (in.)
2.486
Product Length (in.)
2.486
Product Width (in.)
3.359
Valve Inlet Diameter (in.)
.5
Connection
PTC x Comp
Features
Adjustable, Corrosion Resistant, Lead Free, Quarter Turn, Removable
Maximum Pressure
200
UNSPSC
40141607
The Tectite by Apollo 1/2 in. Brass Push-To-Connect x 3/8 in. O.D. Compression Dual Opposed Outlet Dual Shut-Off Quarter-Turn Stop Valve allows for the simple integration of a new plumbing line for running a line from the 1/4 in. Compression line to an end fixture. It is ideal for the addition of ice makers and humidifier supply lines to new or existing systems. The quarter turn ball valves allow for independent flow control of each outlet. Tectite by Apollo push-to-connect stop valves are the cleanest and simplest way to gain flow control on copper, CPVC, PE-RT and PEX pipe without the use of tools, solder, open flame or glue. Simply insert the pipe to allow the high-strength stainless steel teeth to grip the pipe securely against the specially designed O-ring. Stop valve removal and reuse is just as simple using a simple demount clip (sold separately). After assembly, valve may be rotated for simpler installation in tight spaces. All Tectite by Apollo stop valves are approved for use in both potable water and hydronic heating piping systems.
- Constructed of lead free dezincification resistant (DZR) chrome-plated brass for superior reliability
- Outlet connections are 3/8 in. O.D. male compression fits most common faucet and dishwasher supply lines, risers, or tubing
- Fittings can be rotated after being installed for ease of use in tight spaces
- Ideal for potable water and hydronic heating applications
- Listed by IAPMO and listed to ASSE 1061/NSF 61
- Meets UPC, IPC, and cUPC standard requirements
- Demount clip allows for fitting removal (included)
- Approved for behind-the-wall with no access and burial
- Corrosion resistant for greater longevity
- Maximum working pressure of 200 psi and maximum temperature of 250°F
- Chrome-plated brass ball
This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Further information available at www.p65warnings.ca.gov.
