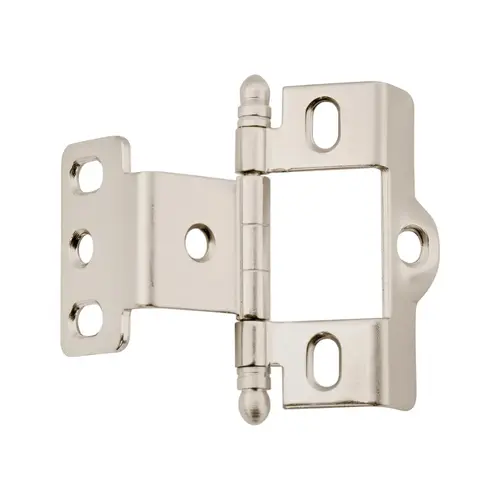

Amerock PK3175TBG10 3/4" (19 mm) Full Inset Full Wrap Ball Tip Cabinet Hinge Satin Nickel Finish
Item #: PK3175TBG10 by Amerock
UPC #: 026634149816
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Amerock Offers High Quality Functional Hardware That Blends In Seamlessly With Any Style
- 3/4 in (19 mm) Door Thick. Hinge
- Finished in Satin Nickel
- Made To Last With Solid Materials
- Includes All Mounting Hardware for Easy Installation
- Sold Individually
- Includes mounting hardware: (Size(s):#6 Flat Head Screw x 5/8in; #6 Flat Head Screw x 1/2in)
- On-Trend, Affordable Quality Hardware
- Limited Lifetime Warranty
- Uncompromised quality at an unbeatable price
Mount Type
Screw
Product Type
Hinge
Base Material
Steel
Wrap Type
Non Self-Closing, Full Wrap
Shelf Pack Width (in)
10.2
Shelf Pack Weight (lbs)
6.25
Shelf Pack Qty
50
Shelf Pack Length (in)
10.7
Shelf Pack Height (in)
4
Product Width Decimal (in)
1.625
Product Projection Fraction (in)
1 1/8
Product Projection Decimal (in)
1.125
Product Projection (mm)
28.575
Product Length Decimal (in)
2.5
Pieces Per Package
50
Packaging Width (in)
1.5
Packaging Length (in)
3
Packaging Height (in)
1.25
Inset Fraction (in)
Full
Inset Decimal (in)
Full
Inset (mm)
Full
Individual Pack
Polybag
Door Thickness Fraction (in)
3/4
Door Thickness Decimal (in)
0.75
Soft Close
No
Self Closing
No
Opening Angle
180
Max Cabinet Door Thickness
0.75
Inset
Full
Hinge Mount
Full Inset
Demount-able
No
Cabinet Type
Face Frame
Adjustable Side to Side
No
Adjustable Depth
No
3-Way Adjustable
No
Collection
Functional Hardware
Number of Knuckles
7
Number of Holes
5
Hinge Type
Wrap
Product Weight
0.1
Product Class
Residential
Door Thickness
19
Installation Type
Screw
Adjustable Height
No
Width
1-5/8
Length
2-1/2
Style
N/A
Top/Bottom Widths
NO
Material
Steel
Finish
Satin Nickel
Configuration
Hinges
Projection
1-1/8 in(29mm)
Type
Full Wrap Ball Tip
Size
3/4 Inch Door Thickness
Pack Size
1
Series
Functional Hardware
Product Length (in.)
2-1/2
Product Width (in.)
1-5/8
Includes Hardware
#6 Flat Head Screw X 5/8In & #6 Flat Head Screw X 1/2In
Product Overview
Every Amerock functional hardware series item is tested for durability in conditions exceeding all KCMA certification requirements and BHMS standards for cycle life, strength and finish quality.
The Amerock PK3175TBG10 3/4 in (19 mm) Door Thick. Hinge is finished in Satin Nickel.
